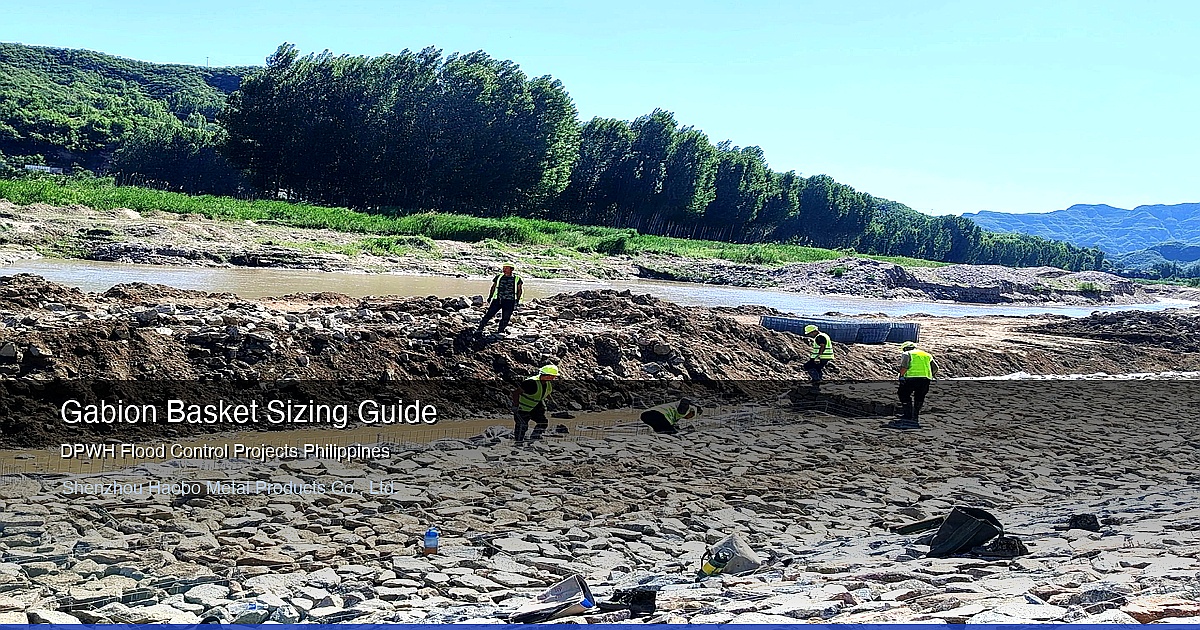

Gabion Basket Sizing and Volume Calculator for Philippine DPWH Flood Control Projects 2026

Gabion baskets are the workhorse of Philippine flood control infrastructure. From the Cagayan River flood mitigation project in Region 2 to the Pampanga River dike reinforcement in Region 3, from the Marikina Riverbank protection in NCR to the Ilog-Hiligaynon River control in Region 6 — DPWH and local government units rely on gabion structures because they are flexible, permeable, and can be built without specialized equipment in remote locations.

However, the success of any gabion flood control project starts with correct basket sizing and accurate volume calculations. Undersized baskets compromise structural integrity. Overestimated stone fill volumes inflate project costs. Incorrect wire mesh area calculations lead to material shortages or excess inventory. This guide provides Philippine engineers, contractors, and project managers with complete sizing formulas, volume calculators, and BOQ preparation methods — all aligned with DPWH Standard Specifications (2022 Edition), Items 502-507.

1. Standard Gabion Basket Sizes for Philippine DPWH Projects

DPWH specifications recognize a range of standard gabion basket sizes. The selection depends on wall height, site conditions, and hydraulic requirements. Below is a comprehensive reference table of the most commonly used basket sizes in Philippine flood control projects.

Basket Size (L x W x H)	Volume (m3)	Mesh Area (m2)	Partitions	Typical Application
2.0 x 1.0 x 1.0m	2.0	7.0	1	Riverbank protection, retaining walls up to 3m
3.0 x 1.0 x 1.0m	3.0	10.0	2	Riverbank protection, dike reinforcement
4.0 x 1.0 x 1.0m	4.0	13.0	3	Base layer of tall walls, large-scale flood control
2.0 x 1.0 x 0.5m	1.0	4.5	1	Capping layer, channel lining, scour protection
3.0 x 1.0 x 0.5m	1.5	6.5	2	Reno mattress, canal lining, road embankment
1.0 x 1.0 x 1.0m	1.0	4.0	0	Corner sections, repair work, small-scale walls

Selection criteria for Philippine projects: For DPWH riverbank protection projects, the 2x1x1m basket is the most commonly specified size because it provides an optimal balance between structural capacity and handling ease. In remote sites where manual handling is required, baskets larger than 3x1x1m are impractical because the filled weight exceeds 5 tons. The 2x1x0.5m and 3x1x0.5m sizes are used as Reno mattresses for channel lining and scour protection aprons.

2. Volume Calculation Formulas for Gabion Baskets

Accurate volume calculation is essential for determining stone fill quantities, wire mesh requirements, and project costs. Below are the engineering formulas used in Philippine DPWH project BOQ preparation.

Stone fill volume formula:

V_stone = L x W x H x N_baskets

Where V_stone = total stone fill volume (m3), L = basket length (m), W = basket width (m), H = basket height (m), N_baskets = number of baskets.

Stone fill weight formula:

W_stone = V_stone x density_stone

Where density_stone = 1.6-1.8 t/m3 for typical Philippine river stone (basalt, granite, limestone). Always use 1.8 t/m3 for conservative BOQ estimation.

Wire mesh area formula (single basket):

A_mesh = 2(LW + LH + WH) + N_partitions x (W x H)

Where A_mesh = total mesh area per basket (m2), N_partitions = number of internal diaphragms.

Example calculation for a 2x1x1m basket with 1 partition:

Parameter	Formula	Result
Basket volume	2.0 x 1.0 x 1.0	2.0 m3
Stone weight	2.0 x 1.8	3.6 tons
Mesh area	2(2+2+1) + 1(1)	7.0 m2
Wire weight (2.7mm)	7.0 x 0.316 kg/m2	2.21 kg

3. Gabion Wall Sizing for Philippine Flood Control Projects

Designing a gabion wall for flood control requires consideration of hydraulic forces, soil conditions, and the specific requirements of the Philippine river system. The following methodology aligns with DPWH hydrology manual and the National Structural Code of the Philippines (NSCP 2015).

Step 1: Determine design flood level. For DPWH projects, the design flood is based on a 50-year return period for standard river training works and a 100-year return period for critical infrastructure protecting urban areas. The flood level determines the minimum wall height. Freeboard of at least 0.5m above the design flood level is required.

Step 2: Calculate wall height. Wall height = scour depth + design flood depth + freeboard. For example, if the scour depth is 1.0m, the design flood depth is 2.5m, and freeboard is 0.5m, the total wall height is 4.0m. This would typically be built in 4 layers of 1.0m high baskets.

Step 3: Determine wall width (base). For gravity gabion walls, the base width should be 0.5 to 0.7 times the wall height. For a 4.0m high wall, the base width should be 2.0-2.8m. Stepped construction is common: use 2.0m wide baskets at the base, stepping in 0.5m or 1.0m increments per layer.

Wall Height (m)	Base Width (m)	Layers	Baskets per linear meter
1.0	0.5-0.7	1	1 (2x0.5x1.0m)
2.0	1.0-1.4	2	2 (2x1x1m)
3.0	1.5-2.1	3	3 (2x1x1m)
4.0	2.0-2.8	4	4 (2x1x1m stepped)
5.0	2.5-3.5	5	5+ (stepped with base widening)

4. Stone Fill Specifications and Quantity Estimation

Stone fill is the single largest cost component of a gabion wall project in the Philippines — often exceeding the cost of the baskets themselves. Proper specification and quantity estimation are critical for project budgeting.

DPWH stone fill requirements (Item 502.3.5):

• Type: Hard, durable, angular stone — granite, basalt, limestone, or dense river cobble
• Size grading: 100mm minimum to 250mm maximum. The maximum size shall not exceed 2/3 of the basket depth. For 1.0m deep baskets, maximum stone size is 250mm. For 0.5m deep Reno mattresses, maximum stone size is 150mm in practice.
• Durability: Los Angeles abrasion loss not exceeding 40% (ASTM C131). Sodium sulfate soundness loss not exceeding 12% after 5 cycles.
• Fill density: 1.6-1.8 t/m3 bulk density. Use 1.8 t/m3 for BOQ estimation.
• Placement: Hand-placed or machine-placed. Stones must be placed with minimum voids, filling corners first and working inward. Overfill each basket by 25-50mm to allow for settlement.

Stone quantity estimation for common wall configurations:

Wall Configuration	Stone Volume (m3/m)	Stone Weight (tons/m)	Baskets per linear meter
1m high, 1m wide (2x1x0.5m)	0.5	0.9	1
2m high, 1m wide (2x1x1m x 2 layers)	2.0	3.6	2
3m high, 2m base (stepped)	4.0	7.2	4
4m high, 2m base (stepped)	6.0	10.8	6

5. Wire Mesh Specifications and Area Calculation

The wire mesh is the structural component of a gabion basket. Proper specification ensures the basket can withstand the hydraulic forces of Philippine river systems during flood events.

DPWH standard wire specifications (Item 502.2):

• Wire diameter: 2.7mm minimum for baskets, 3.0mm for selvedge edges, 2.2mm for lacing wire
• Mesh opening: 80mm x 100mm hexagonal (nominal). The mesh opening must not elongate more than 10% under design load.
• Tensile strength: 350-500 MPa (ASTM A975)
• Zinc coating: Minimum 275 g/m2 for hot-dip galvanized (ASTM A641). For marine environments, use Galfan (Zn-5%Al) coating per ASTM A856 with minimum 245 g/m2.
• PVC coating: Optional, 0.5mm minimum thickness for highly corrosive or marine environments

Wire mesh weight calculation:

W_wire = A_mesh x unit_weight

Where unit_weight = 0.316 kg/m2 for 2.7mm wire at 80x100mm mesh (galvanized), 0.380 kg/m2 for 3.0mm wire.

Total mesh weight for a project example: A 100-meter long, 2-meter high riverbank protection wall using 2x1x1m baskets requires 100 baskets. Each basket has 7.0 m2 of mesh, so total mesh = 700 m2. At 0.316 kg/m2, the wire weight is 221 kg. Add 5% for lacing wire and accessories = 232 kg total.

6. BOQ Preparation Guide for DPWH Gabion Projects

Preparing a Bill of Quantities (BOQ) for DPWH gabion projects requires line items for gabion baskets, stone fill, geotextile filter, excavation, backfill, and accessories. Below is a sample BOQ for a 100-meter long, 2-meter high riverbank protection wall.

Item	Description	Quantity	Unit
502.1	Gabion baskets 2x1x1m, galvanized 2.7mm wire, 80x100mm mesh	100	pcs
502.2	Lacing wire, 2.2mm galvanized	12	kg
502.3	Stone fill, 100-250mm hard durable stone	200	m3
502.4	Non-woven geotextile filter, 200 g/m2	200	m2
502.5	Foundation excavation, common earth	50	m3
502.6	Granular backfill, compacted	100	m3
502.7	Gabion basket assembly and installation	100	pcs

7. Cost Estimation for Philippine Gabion Projects

Understanding the full cost breakdown helps contractors prepare competitive bids and helps project owners verify budget adequacy. Below is a cost estimation for a typical 100-meter, 2-meter high gabion riverbank protection wall in the Philippines.

Cost Component	Quantity	Unit Cost (PHP)	Total (PHP)
Gabion baskets (imported, FOB Tianjin)	700 m2	300-350/m2	210,000-245,000
Stone fill (local quarry)	200 m3	800-1,200/m3	160,000-240,000
Geotextile filter	200 m2	80-120/m2	16,000-24,000
Excavation and backfill	150 m3	300-500/m3	45,000-75,000
Labor (assembly, stone placement)	100 baskets	800-1,200/basket	80,000-120,000
Shipping (Tianjin to Manila)	700 m2	50-80/m2	35,000-56,000
Total (100m wall)	-	-	546,000-760,000

Cost per linear meter: PHP 5,460-7,600 per linear meter for a 2m high gabion wall (including materials, labor, and shipping). This is approximately 30-40% less than an equivalent concrete retaining wall in the Philippines.

8. Shipping from China to Philippine Project Sites

Most gabion baskets used in Philippine DPWH projects are imported from China due to cost advantages and manufacturing capability. Understanding the shipping process helps project managers plan delivery timelines and avoid delays.

Shipping route: Tianjin Port (China) to Manila Port (Philippines)

• Transit time: 12-18 days by sea (FCL container)
• Container capacity: One 20-foot container holds approximately 500-700 collapsed gabion baskets (2x1x1m size), depending on packing density
• FOB Tianjin pricing: $3.50-$5.20/m2 for galvanized gabion mesh (2.7mm, 80x100mm)
• Sea freight: $800-$1,200 per 20-foot container (Tianjin to Manila)
• Customs duty: 5% import duty on wire mesh products (HS code 7314.41)
• VAT: 12% VAT applies to imported goods
• Philippine customs clearance: 3-7 days from vessel arrival
• Inland transport (Manila to project site): Manila to Region 3 (Pampanga): PHP 8,000-15,000 per truckload. Manila to Region 2 (Cagayan): PHP 25,000-40,000 per truckload.

Total lead time from order to site delivery: 25-35 days (production 7-10 days + shipping 12-18 days + customs 3-7 days). Plan orders at least 6 weeks before the required on-site date.

9. Quality Control and Acceptance Criteria

DPWH specifications include strict quality control requirements for gabion projects. The following acceptance criteria must be met before a project can be considered substantially complete.

Material acceptance:

• Wire mesh: Verify wire diameter (2.7mm min), zinc coating (275 g/m2 min), mesh opening (80x100mm), and tensile strength via mill test certificate (MTC). Third-party testing at DPWH-accredited laboratories is required for projects exceeding PHP 5 million.
• Stone fill: Verify durability (LA abrasion under 40%), gradation (100-250mm), and cleanliness (under 5% fines by weight).
• Geotextile: Verify mass per unit area (200 g/m2 min), apparent opening size (AOS), and permittivity per DPWH Material Specification.

Installation acceptance:

• Basket alignment: Maximum deviation from design alignment is 25mm per 3m of wall length.
• Wall face batter: Within plus or minus 1 degree of design batter (typically 6 degrees from vertical).
• Basket fill density: No voids larger than 100mm. Stone fill must extend to all corners and edges.
• Diaphragm alignment: Internal partitions must be perpendicular to the wall face and securely tied at all connections.
• Lacing: All edges must be laced with 2.2mm wire at 100mm intervals. No skipped stitches.

For Philippine contractors preparing DPWH project bids, accurate gabion basket sizing and volume calculation is the foundation of a competitive and profitable project. By following the formulas, specifications, and BOQ templates in this guide, you can ensure your project meets all DPWH requirements while maintaining cost control. For customized gabion basket quotations, volume calculations, or technical support for your Philippine flood control project, contact our engineering team today.
