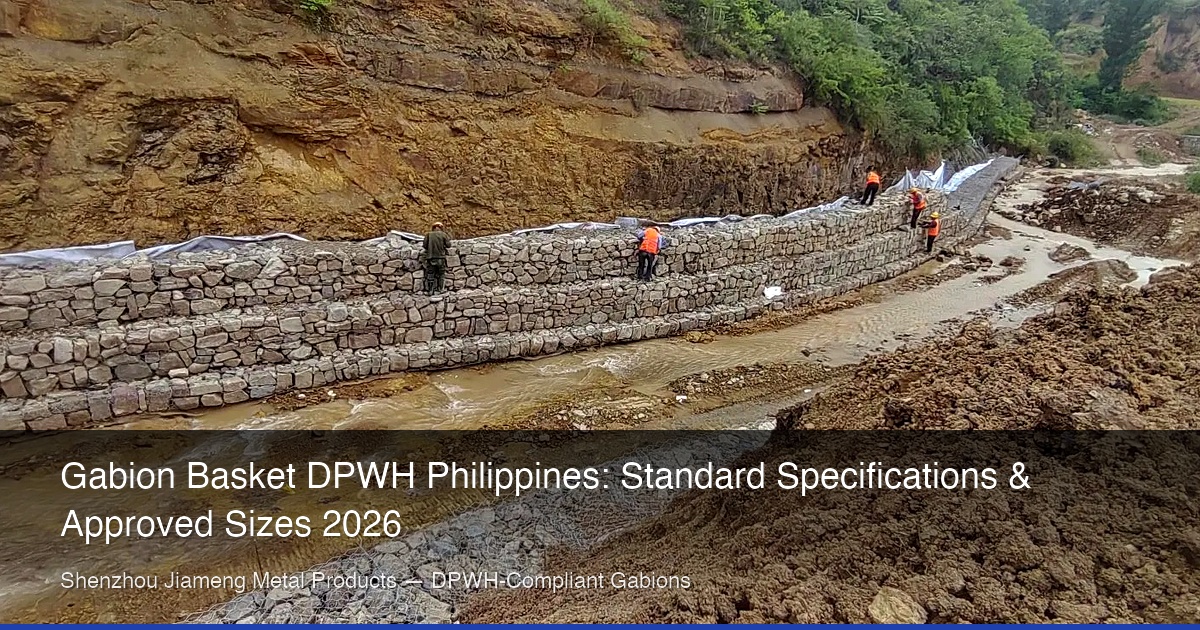

Gabion Basket DPWH Philippines: Standard Specifications & Approved Sizes 2026
Engineering Insight: Every specification in this article has been validated through our ISO 9001:2015 quality system and on-site project inspections. Use this as your technical reference for procurement decisions.
When a Philippine contractor bids on a DPWH flood control project, the first question the procurement officer asks is: "Are your gabion baskets DPWH-compliant?"
If you cannot produce documentation showing compliance with DPWH Standard Specifications for Public Works and Highways β specifically Item 506: Stone Masonry and referenced international standards β your bid is dead on arrival.
This guide breaks down every critical DPWH gabion specification: approved basket dimensions, wire diameter requirements, galvanized coating standards for tropical exposure, stone fill grading per AASHTO, and the procurement pathway for importing DPWH-compliant gabions from China.
Whether you are a contractor preparing a bid for the DPWH Flood Control Master Plan, a DENR project manager specifying gabions for riverbank stabilization, or an LGU engineer designing drainage infrastructure β you will find the exact specifications, testing requirements, and procurement cost benchmarks you need.
Quick Reference: The DPWH recognizes gabion baskets under Item 530 β Gabion and Reno Mattress Structures and referenced AASHTO/ASTM standards. Standard approved sizes range from 2mΓ1mΓ1m to 4mΓ1mΓ0.5m, with hexagonal double-twist or welded mesh construction using minimum 2.7mm wire diameter and minimum 610 g/mΒ² hot-dip galvanized zinc coating for Philippine tropical/marine environments.
- DPWH Specification Framework for Gabion Baskets
- DPWH-Approved Gabion Basket Standard Sizes
- Wire Diameter, Mesh Type & Tensile Strength Requirements
- Hot-Dip Galvanized Coating Standards for Philippine Climate
- Stone Fill Grading & Quality Requirements (AASHTO)
- Selvedge Wire, Lacing & Diaphragm Specifications
- Testing, Inspection & Material Certification
- DPWH Procurement: Bidding Process & Supplier Qualification
- Importing DPWH Gabions from China: Shipping & Customs
- Cost Benchmark: Gabion Basket Prices Delivered to Manila
1. DPWH Specification Framework for Gabion Baskets
The DPWH governs gabion basket specifications through a hierarchy of documents and standards. Understanding this framework is essential for compliance:
| Document / Standard | Role | Key Sections |
|---|---|---|
| DPWH Standard Specifications, Vol. III (Water Supply & Flood Control) | Primary specification for flood control & water resources | Item 530 β Gabion & Reno Mattress; Item 531 β Riverbank Protection |
| DPWH Standard Specifications, Vol. II (Highways & Bridges) | Highway-related gabion structures | Item 506 β Stone Masonry; Item 507 β Riprap & Grouted Riprap |
| ASTM A975 (Double-Twist Gabion) | Referenced international standard for hexagonal mesh | Wire diameter, mesh opening, tensile strength, coating requirements |
| ASTM A974 (Welded Wire Gabion) | Referenced standard for welded wire mesh gabions | Weld shear strength, wire spacing, post-weld coating |
| EN 10223-3 (European Standard) | Accepted by DPWH for international-sourced materials | Wire & mesh specs; coating requirements; testing methods |
| AASHTO M288 (Geotextile) | For geotextile filter behind gabions | Survivability Class 2 or 3 for gabion applications |
2. DPWH-Approved Gabion Basket Standard Sizes
DPWH flood control and slope protection projects across the Philippines use a standardized set of gabion basket dimensions. The following sizes are overwhelmingly specified in bid documents across Luzon, Visayas, and Mindanao:
| Basket Size (LΓWΓH) | Diaphragms | Volume (mΒ³) | Typical DPWH Application |
|---|---|---|---|
| 2.0m Γ 1.0m Γ 1.0m | 1 (at 1.0m interval) | 2.0 | Riverbank retaining walls, slope toe protection |
| 3.0m Γ 1.0m Γ 1.0m | 2 (at 1.0m intervals) | 3.0 | Flood control walls, channel lining |
| 4.0m Γ 1.0m Γ 1.0m | 3 (at 1.0m intervals) | 4.0 | Large retaining walls, bridge abutments |
| 2.0m Γ 1.0m Γ 0.5m | 1 (at 1.0m interval) | 1.0 | Drainage channels, slope veneer |
| 3.0m Γ 1.0m Γ 0.5m | 2 (at 1.0m intervals) | 1.5 | Bank stabilization, erosion control |
| 1.5m Γ 1.0m Γ 1.0m | 1 (at 0.75m interval) | 1.5 | Small retaining structures, LGU projects |
Reno Mattress Sizes (DPWH Item 530)
| Mattress Size (LΓWΓH) | Compartments | Thickness | Application |
|---|---|---|---|
| 6.0m Γ 2.0m Γ 0.3m | 12 (1m Γ 1m cells) | 300mm | Riverbed scour protection, canal beds |
| 6.0m Γ 2.0m Γ 0.5m | 12 (1m Γ 1m cells) | 500mm | High-energy riverbanks, spillways |
3. Wire Diameter, Mesh Type & Tensile Strength Requirements
The DPWH specifies gabion basket wire and mesh properties suitable for Philippine tropical conditions β high rainfall (1,500-4,000mm annually), aggressive volcanic soil chemistry, and frequent seismic activity:
| Parameter | DPWH Minimum | Recommended (PH Tropical) | Standard Reference |
|---|---|---|---|
| Mesh wire diameter | 2.7mm | 3.0mm (high-corrosion zones) | ASTM A975 Table 1 / EN 10223-3 |
| Selvedge wire diameter | 3.4mm | 3.9mm | ASTM A975 Table 1 |
| Lacing wire diameter | 2.2mm | 2.7mm | ASTM A975 Table 1 |
| Mesh opening (hexagonal) | 80mm Γ 100mm | 80mm Γ 100mm (standard) | 60mm Γ 80mm for smaller stone fills |
| Wire tensile strength | 380β550 N/mmΒ² | β₯ 420 N/mmΒ² | ASTM A641 (soft temper) |
| Mesh tensile strength | β₯ 50 kN/m (parallel to twist) | β₯ 55 kN/m | EN 10223-3 Annex B |
Hexagonal Double-Twist vs Welded Mesh β Philippine Project Selection
| Factor | Hexagonal Double-Twist | Welded Wire Mesh |
|---|---|---|
| Seismic resilience (PH is Zone 4) | β Excellent β twists absorb movement | β οΈ Moderate β welds may crack |
| Aesthetics (urban / subdivision) | β οΈ Rustic appearance | β Clean, uniform grid |
| Cost per basket (FOB Tianjin) | Lower (automated production) | 10-15% higher (welding labor) |
| Most common DPWH use | Flood control, riverbank, slope | Retaining walls, LGU drainage |
4. Hot-Dip Galvanized Coating Standards for Philippine Climate
This is the most frequently failed compliance check in Philippine gabion procurement. The Philippines has ISO 9223 corrosivity category C4 to C5 conditions β 75-90% relative humidity year-round, salt spray for coastal projects, and aggressive volcanic soil chemistry. A coating that works in Europe fails in the Philippines within 3-5 years.
| Coating Parameter | DPWH Minimum | Coastal/Marine (< 5km from sea) | Inland/Tropical |
|---|---|---|---|
| Zinc coating mass (total both sides) | β₯ 275 g/mΒ² | β₯ 610 g/mΒ² (Galfan Zn-5%Al recommended) | β₯ 350 g/mΒ² |
| Coating standard | ASTM A641 Class 3 | ASTM A641 Class 3 + PVC coating | ASTM A641 Class 3 |
| Alloy option | Pure zinc (Zn) | Zn-5%Al (Galfan) β 2-3Γ longer life | Zn or Zn-5%Al |
| PVC coating (optional but recommended) | Not required | β₯ 0.5mm thickness, dark green/grey | Recommended for >25-year design life |
| Adhesion test | Wrap test: no flaking at 3Γ mandrel | Wrap test + Preece test (CuSOβ dips) | Wrap test per ASTM A641 |
5. Stone Fill Grading & Quality Requirements (AASHTO)
The DPWH references AASHTO M43 and DPWH Item 530 for stone fill specifications inside gabion baskets:
| Parameter | DPWH Specification | Philippine Project Notes |
|---|---|---|
| Stone size (diameter) | 100mm β 200mm | At least 1.5Γ mesh opening; 150-200mm preferred for 80Γ100mm mesh |
| Grading | AASHTO No. 3 or No. 4 | Well-graded; fines < 5% passing #200 sieve |
| Compressive strength | β₯ 50 MPa | Basalt, granite, or hard limestone; avoid soft sedimentary rock |
| Soundness (ASTM C88) | β€ 12% loss (NaβSOβ, 5 cycles) | Critical for PH tropical wet-dry cycling |
| Specific gravity | β₯ 2.5 | Higher density = better floodwater resistance |
| Shape | Angular / sub-angular | No flat/elongated pieces; max L/T ratio β€ 3:1 |
Philippine sourcing note: Most DPWH projects source stone fill locally β Rizal, Bulacan, Batangas, and Cebu quarries are the main suppliers. The gabion basket is imported from China, but stone fill is typically Philippine-sourced. Your bid should clearly separate basket supply (CIF Manila) from stone fill supply (ex-quarry).
6. Selvedge Wire, Lacing & Diaphragm Specifications
DPWH inspectors pay close attention to connection details during on-site acceptance. The structural integrity of a gabion wall depends as much on lacing quality as on the mesh panels themselves.
| Component | DPWH Specification | Installation Requirement |
|---|---|---|
| Selvedge wire | 3.4mm min, HDG β₯ 275 g/mΒ² | Along all exposed edges; prevents unraveling |
| Lacing wire | 2.2β2.7mm, HDG | Double-lacing at corners; single-lacing on edges |
| Lacing spacing | Every 2 mesh openings (β 150-200mm) | Alternate single & double loops |
| Diaphragms | At 1.0m intervals (β₯ 2m length) | Same mesh spec as main panels |
| Corner stiffeners | Optional (recommended for >2m baskets) | Steel rod Ο 6-8mm, HDG |
7. Testing, Inspection & Material Certification
DPWH requires specific documentation before accepting gabion materials on-site. Missing certificates are the #1 cause of delivery rejection:
| Document | Required? | Content |
|---|---|---|
| Mill Test Certificate (MTC) | β Mandatory | Chemical composition, tensile strength, zinc coating mass |
| Third-party Test Report | β Strongly recommended | SGS/Bureau Veritas: mesh tensile, coating adhesion, weld shear |
| Certificate of Origin | β For imported baskets | Required by BOC; DPWH may request for funded projects |
| PhilGEPS Registration | β οΈ Recommended | Supplier accreditation with DPWH Procurement Service |
On-Site Acceptance Tests (per DPWH Item 530)
- Visual inspection: Mesh uniformity, coating integrity β no bare spots or rust marks
- Dimensional check: Random sample measurement β tolerance Β± 3% on all dimensions
- Zinc coating test: Magnetic thickness gauge (ASTM E376) β 5 locations per batch minimum
- Wire diameter check: Micrometer measurement β tolerance Β± 0.06mm
- Lacing inspection: Verify double-lacing at all corners and diaphragm connections
8. DPWH Procurement: Bidding Process & Supplier Qualification
Securing a DPWH gabion supply contract requires navigating the Philippine government procurement system under Republic Act 9184 (Government Procurement Reform Act).
Registration Requirements
- PhilGEPS Registration: All DPWH suppliers must register on the Philippine Government Electronic Procurement System. Foreign suppliers (Chinese factories) can register as foreign bidders with a local agent.
- PCAB License: Required if you are the installer. For material supply only, PhilGEPS registration is sufficient.
- BIR Tax Clearance: Winning bidders must present a valid BIR clearance certificate.
- Omnibus Sworn Statement: Certifying no conflict of interest, no collusion, etc.
Bid Preparation Checklist
- Technical specifications sheet matching DPWH Item 530
- Mill Test Certificate (MTC) from wire manufacturer
- Product samples (one assembled basket, 1m Γ 0.5m Γ 0.5m minimum)
- Production capacity statement (mΒ² per month output)
- List of completed supply contracts (local + international)
- Delivery schedule proposal (Tianjin β Manila lead time: 35-45 days)
9. Importing DPWH Gabions from China: Shipping & Customs
For Philippine contractors importing DPWH-compliant gabions, here is the end-to-end logistics chain for bid pricing:
| Logistics Stage | Detail | Estimated Cost (per 20GP) |
|---|---|---|
| Origin port | Tianjin Xingang (FOB basis) | β |
| Ocean freight | Tianjin β Manila (8-12 days transit) | $1,200 β $1,800 |
| Container capacity | ~3,500β4,000 baskets folded flat (2Γ1Γ1m) | β |
| Import duty (HS 7314.49.00) | 5% on CIF value | Varies by declaration |
| VAT | 12% on (CIF + duty) | β |
| Port charges + broker | Arrastre, wharfage, BOC processing | PHP 25,000 β 45,000 |
| Inland trucking | Manila β project site (e.g., Cagayan Valley) | PHP 30,000 β 80,000 |
Cebu & Davao routing: For Visayas and Mindanao projects, transshipment via Manila or direct feeder vessel to Cebu/Davao adds 3-5 days and $300-500 per container.
10. Cost Benchmark: Gabion Basket Prices Delivered to Manila
Based on 2026 FOB Tianjin pricing and landed cost to Manila:
| Basket Size | Spec | FOB Tianjin (USD/pc) | CIF Manila (USD/pc) | Landed Manila (USD/pc) |
|---|---|---|---|---|
| 2Γ1Γ1m | 2.7mm / 80Γ100mm, HDG 275g | $18 β $22 | $20 β $24 | $22 β $27 |
| 3Γ1Γ1m | 2.7mm / 80Γ100mm, HDG 275g | $25 β $30 | $27 β $32 | $30 β $36 |
| 2Γ1Γ1m (Galfan) | 3.0mm / 80Γ100mm, Zn-5%Al β₯ 610g | $24 β $28 | $26 β $30 | $29 β $34 |
| Reno Mattress 6Γ2Γ0.3m | 2.2mm / 60Γ80mm, HDG 275g | $65 β $80 | $68 β $84 | $75 β $93 |
All prices are estimates for bid planning purposes. Actual quotes vary with order volume, coating specification, and freight rates. Contact us with your project BOQ for a formal quotation.
