Gabion Mesh Products
Gabion mesh boxes and mattresses are engineered wire mesh containers manufactured from hexagonal double-twist woven steel wire. Available in galvanized (ASTM A975), Galfan (Zn-5%Al alloy), and PVC-coated finishes, our gabion products meet international standards for civil engineering and infrastructure projects. Wire diameters range from 2.0mm to 4.0mm with mesh openings from 60x80mm to 100x120mm. Each gabion box features internal diaphragms at 1-meter intervals for structural stability and is filled with locally sourced rock fill (100-200mm grading). Haobo Metal supplies gabion solutions to contractors, DPWH projects, and private developers across Southeast Asia, the Middle East, and Africa.

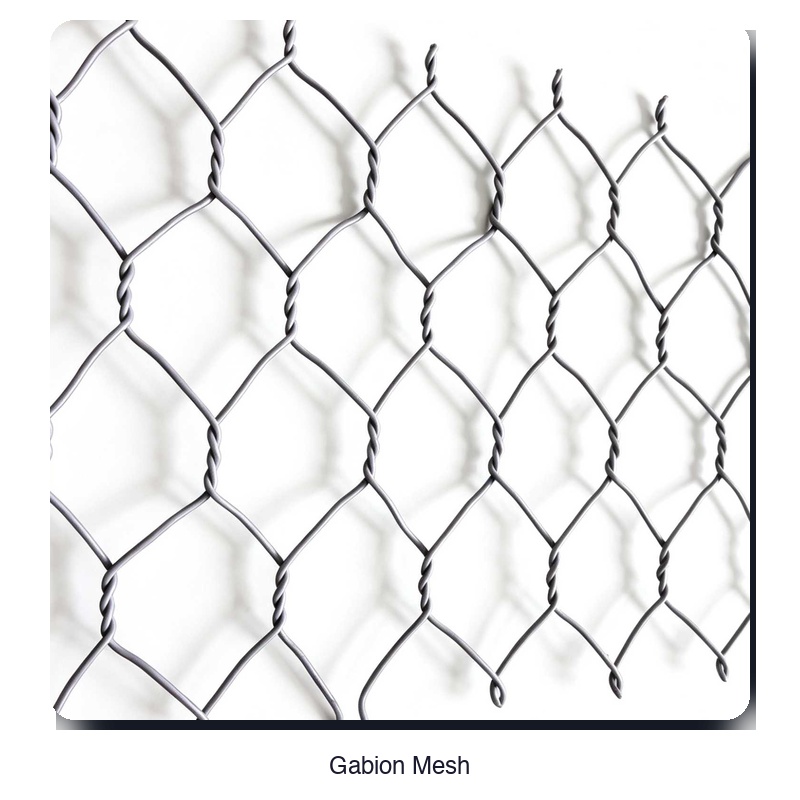

Gabion Mesh
Gabion mesh boxes are heavy-duty wire mesh containers made of hexagonal double-twist woven mesh, PVC-coated or Galfan (Zn-5%Al) galvanized steel wire. Mesh openings range from 60×80mm to 100×120mm, wi
Specifications
- Wire Diameter: 2.0mm, 2.2mm, 2.4mm, 2.7mm, 3.0mm, 3.4mm, 3.9mm, 4.0mm
- Mesh Size: 60×80mm, 80×100mm, 80×120mm, 100×120mm
- Coating: Heavy galvanized (≥245g/m²), Galfan Zn-5%Al (≥275g/m²), PVC-coated (0.4-0.6mm)
- Tensile Strength: 380-550 N/mm² (per ASTM A975)
- Selvedge Type: Welded selvedge, knotted selvedge
- Standard Sizes: 2×1×1m, 3×1×1m, 4×1×1m, 2×1×0.5m (custom available)
- Diaphragms: 1m intervals, same mesh as body
- Packaging: Folded flat on pallets, 50-100 pcs/bundle, PE film wrapped
- Certification: ISO 9001, ASTM A975, EN 10223-3, BS 8002
- Lead Time: 15-25 days for standard specs, 7-10 days express available
Get Factory-Direct Pricing Today
Custom sizes, coatings, and quantities available. Fast FOB Tianjin shipping worldwide.
Quality Assurance
Every product undergoes rigorous testing and quality control before shipment. We test for tensile strength, zinc coating weight, dimensional accuracy, and weld integrity to ensure compliance with international standards.
Material Testing
Raw materials tested for tensile strength, elongation, and chemical composition before production
Process Control
In-line quality checks during wire drawing, weaving, welding, and coating processes
Final Inspection
100% visual inspection plus random sampling for dimensional and mechanical property testing
Third-Party Certification
SGS, BV, and other accredited labs available for independent verification upon request
Need a Quote for Your Project?
Factory-direct pricing. Custom specs. FOB Tianjin. Response within 24 hours.
Common Applications
- Retaining walls and earth retention structures
- Riverbank and shoreline scour protection
- Highway and railway slope stabilization
- Bridge abutment protection and erosion control
- Coastal defense and seawall construction
- Channel lining and drainage infrastructure
- Architectural and landscaping features
Ready to Order? Get Your Custom Quote
Specify dimensions, wire diameter, and coating grade. We deliver worldwide.
Frequently Asked Questions
What wire diameter do I need for my gabion project?
For standard retaining walls, 2.7mm wire diameter is the most common choice. For heavy-duty applications like riverbank protection or coastal defense, 3.0mm or 4.0mm is recommended. PVC coating adds 1mm to the base wire diameter and provides superior corrosion resistance for marine environments.
What is the difference between galvanized and Galfan coating?
Galvanized coating uses pure zinc (ASTM A641), typically 245-275 g/m2. Galfan (Zn-5%Al alloy) coating provides 2-3 times longer service life than standard galvanizing, making it ideal for aggressive environments. For marine or highly corrosive applications, PVC coating over galvanized wire offers the best protection.
How long do gabion structures last?
Properly designed gabion structures with galvanized wire last 30-50 years in normal soil conditions. Galfan-coated gabions extend service life to 50-75 years. PVC-coated gabions in marine environments can last 60+ years. The rock fill itself is permanent and does not degrade.
What rock fill size is required for gabion baskets?
Rock fill should be 100mm to 200mm (4-8 inches) for standard gabion boxes, and slightly smaller (75mm to 150mm) for gabion mattresses. The rock size must be larger than the mesh opening to prevent fill loss. Hard, durable, angular stone is preferred over rounded river rock.
Do you provide factory-direct pricing and shipping?
Yes. Haobo Metal offers factory-direct FOB and CIF pricing. We ship from Tianjin Port to Manila, Cebu, and other Southeast Asian ports. Lead time is typically 15-25 days for production plus shipping time. Contact us for a detailed quote including freight.
What certifications and test reports are available?
All gabion products come with Material Test Certificates (MTC) showing wire tensile strength, zinc coating weight, and mesh dimensions. We are ISO 9001 certified and manufacture to ASTM A975, EN 10223-3, and BS 8002 standards. Third-party inspection (SGS, BV, TUV) is available upon request.
