Gabion Mesh vs Reno Mattress: How to Choose the Right Solution for Your Project
Understanding Gabion Mesh and Reno Mattress
When it comes to erosion control, riverbank protection, and slope stabilization, two wire mesh solutions dominate the market: gabion mesh and reno mattress. While both are made from woven or welded wire mesh and filled with stones, they serve different purposes and have distinct structural characteristics. Choosing the wrong type can lead to project delays, cost overruns, or even structural failure.

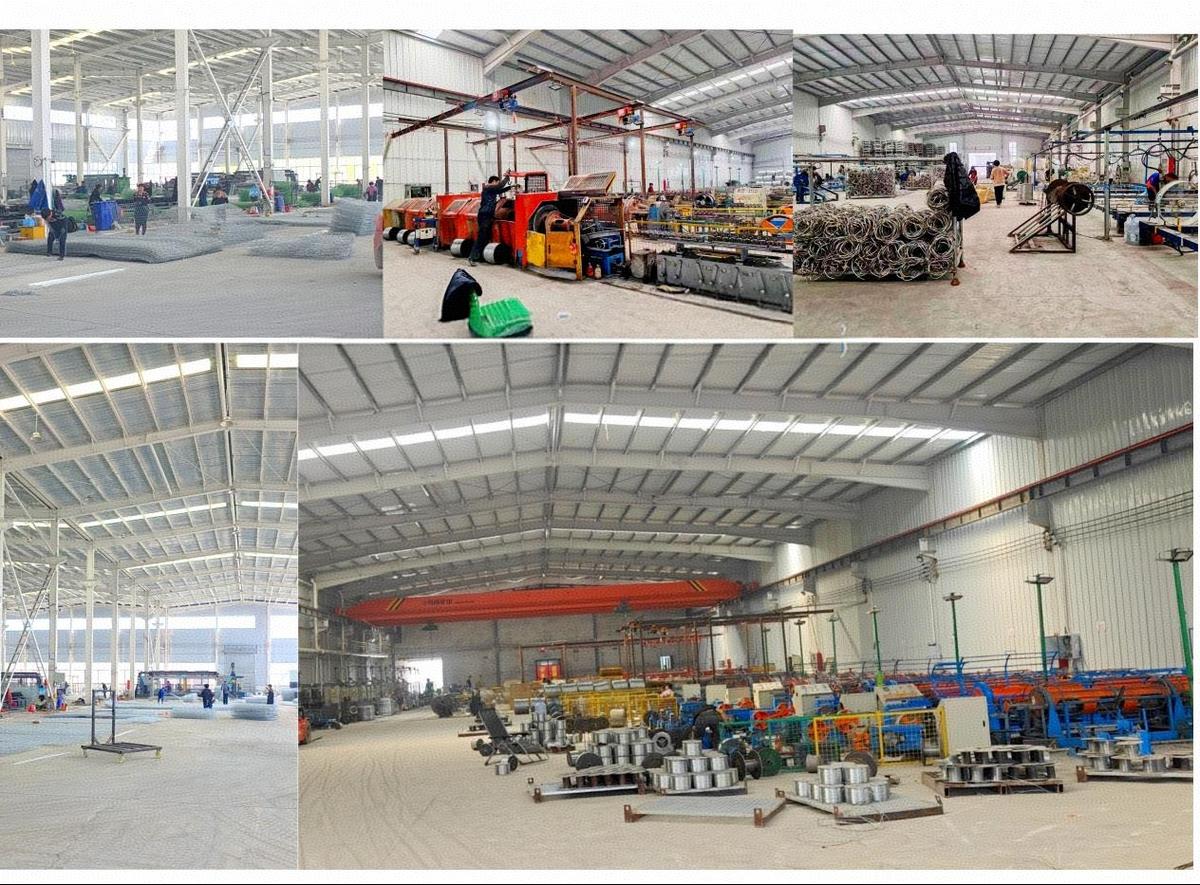

At Haobo Metal Products Co., Ltd., we manufacture both gabion mesh and reno mattress with ISO-certified quality control. This guide will help you understand the key differences and select the right product for your specific application.
What Is Gabion Mesh?

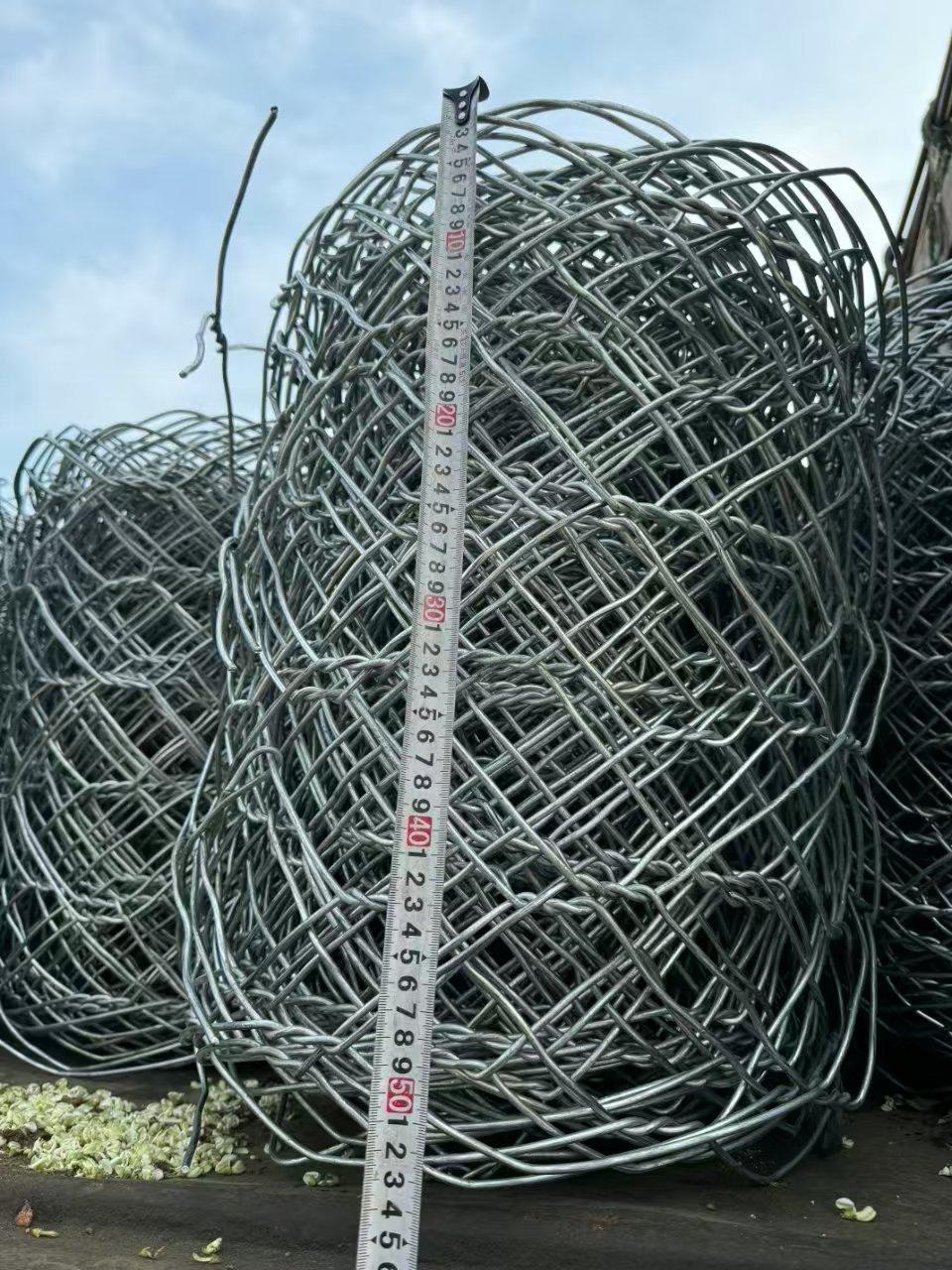

Gabion mesh refers to the wire mesh used to construct gabion baskets or boxes. These are typically box-shaped containers with dimensions ranging from 1m x 1m x 1m to 2m x 1m x 1m, filled with rocks and stacked to form retaining walls, weirs, or erosion barriers.
Key characteristics of gabion mesh:

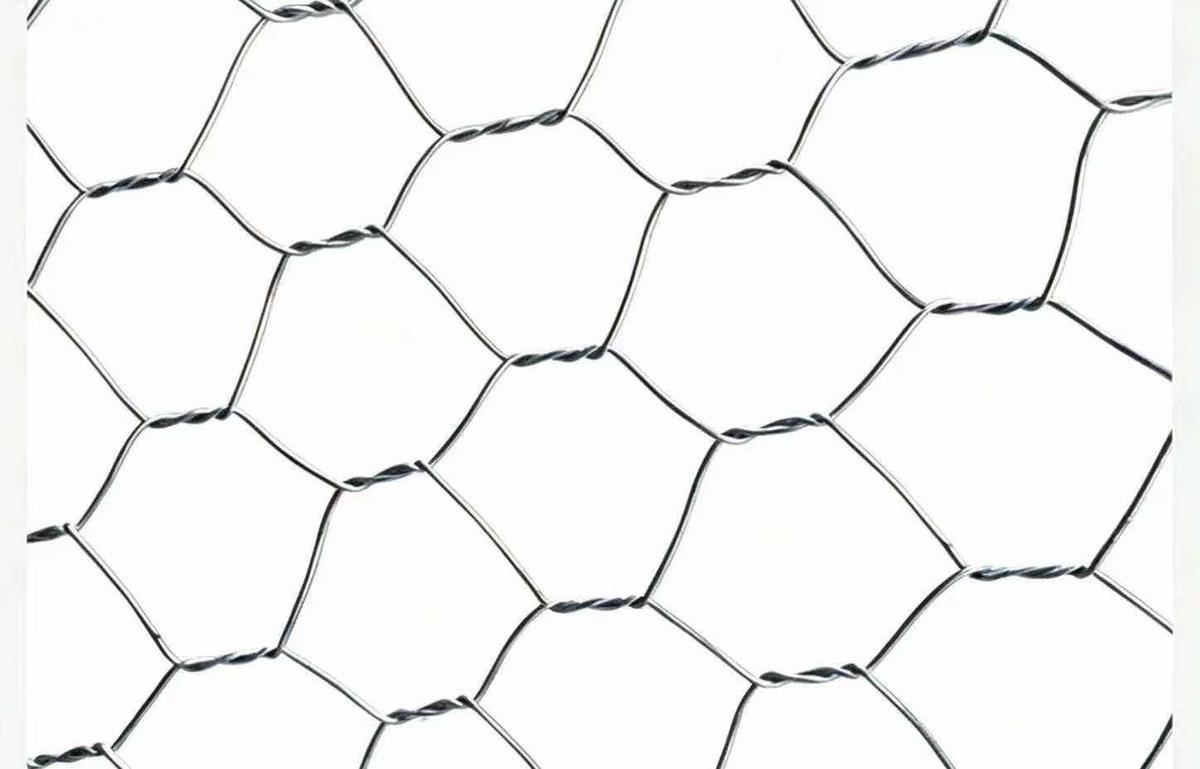

- Mesh type: Hexagonal woven wire (double-twisted) or welded mesh
- Wire diameter: 2.0mm - 4.0mm (common: 2.7mm)
- Mesh opening: 60mm x 80mm, 80mm x 100mm, or 100mm x 120mm
- Coating: Hot-dip galvanized (≥245g/m²) or Galfan (Zn-Al 5%)
- Typical lifespan: 20-50 years depending on coating and environment
What Is Reno Mattress?
A reno mattress (also called a mattress gabion or river mattress) is a much shallower version of a gabion basket. Typically 0.15m to 0.30m in thickness, it is laid flat on riverbeds, canal slopes, or shoreline areas to prevent scour and erosion.
Key characteristics of reno mattress:
- Thickness: 0.15m - 0.30m (much thinner than gabion boxes)
- Mesh type: Same hexagonal woven wire as gabion mesh
- Wire diameter: Typically 2.0mm - 2.7mm
- Application: Riverbed lining, channel protection, coastal defense
- Advantage: More flexible, conforms to uneven terrain
Side-by-Side Comparison
| Feature | Gabion Mesh / Box | Reno Mattress |
|---|---|---|
| Typical Height | 0.5m - 1.0m | 0.15m - 0.30m |
| Primary Use | Retaining walls, weirs, barriers | Riverbed lining, slope protection |
| Stone Size | 100mm - 250mm | 50mm - 150mm |
| Cost per m² | Higher (more wire, more stone) | Lower (less material) |
| Installation | Stacked vertically | Laid flat, pinned to ground |
| Flexibility | Rigid structure | High flexibility, adapts to terrain |
When to Choose Gabion Mesh
Select gabion mesh (boxes) when your project requires:
- Vertical retaining walls — highway embankments, bridge abutments, landscaping walls
- Flow deflection — river training structures, groynes, weirs
- Noise barriers — along highways and railways
- Structural support — where load-bearing capacity is needed
When to Choose Reno Mattress
Select reno mattress when your project requires:
- Riverbed protection — preventing scour under bridges, pipelines
- Canal lining — preventing erosion in irrigation channels
- Coastal defense — shoreline protection against wave action
- Large-area coverage — where cost per square meter matters
Quality Standards to Look For
Whether you choose gabion mesh or reno mattress, ensure your supplier meets these standards:
- ISO 9001 quality management certification
- ASTM A975 or EN 10223-3 wire mesh standards
- Hot-dip galvanizing ≥ 245g/m² (or Galfan coating for longer life)
- Tensile strength ≥ 400 N/mm² for the wire
- Proper PVC coating (if required) ≥ 0.5mm thickness
Cost Considerations
While reno mattress has a lower unit cost, the total project cost depends on:
- Transportation distance (heavy stone fill adds logistics cost)
- Local stone availability
- Installation labor (mattress is faster to install)
- Design life requirements (Galfan costs more but lasts 2-3x longer)
At Haobo Metal, we provide free project consultation to help you calculate the most cost-effective solution. Contact us with your project specifications for a detailed quotation.
Conclusion
Both gabion mesh and reno mattress are excellent erosion control solutions, but they serve different structural needs. Gabion boxes are ideal for vertical structures and load-bearing applications, while reno mattresses excel at large-area, flat-surface protection. Understanding your project's specific requirements — height, load, flow conditions, and budget — will guide you to the right choice.
Need help deciding? Contact Haobo Metal for a free technical consultation and project-specific quotation.
