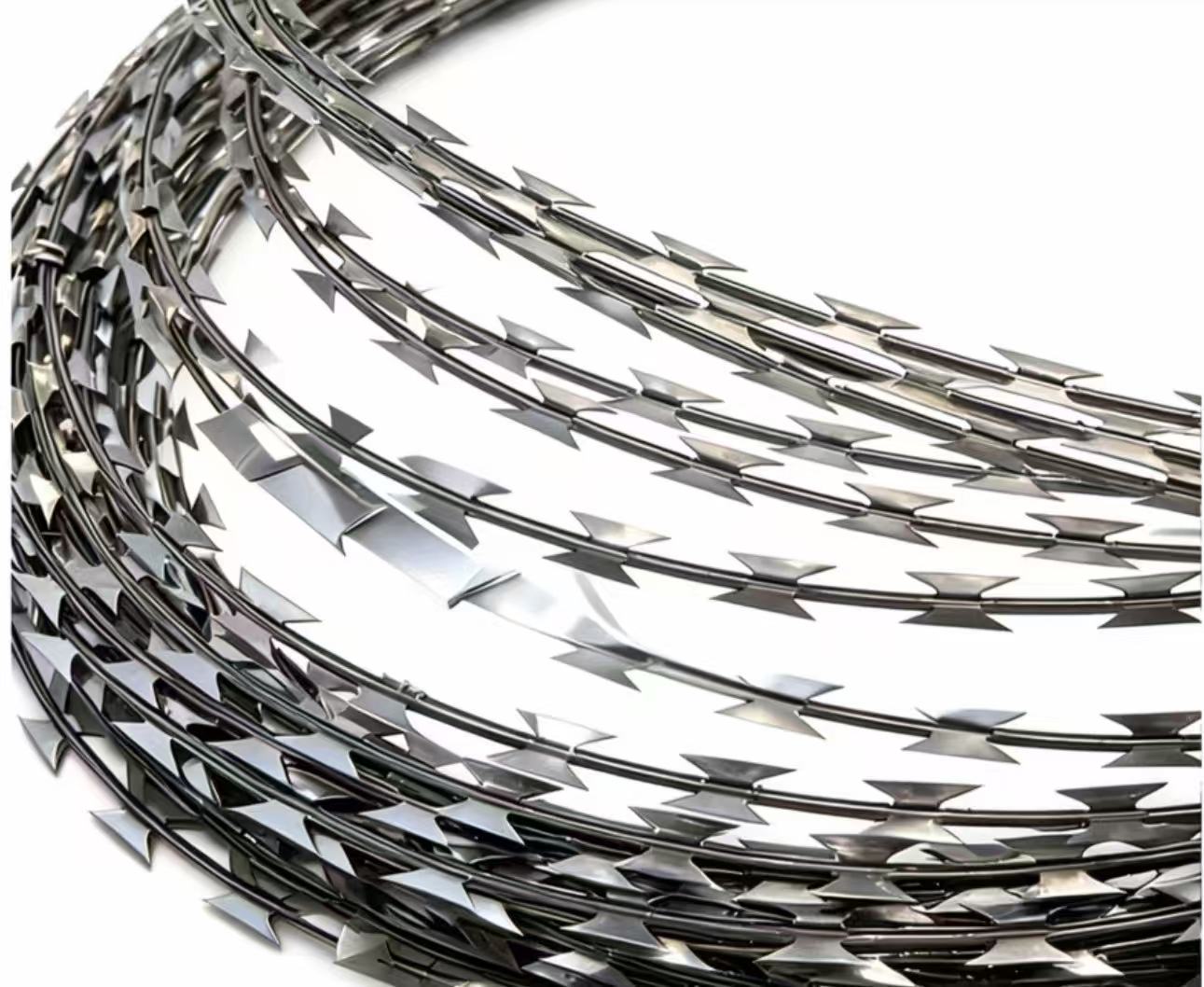

Razor Barbed Wire Products
Razor barbed wire (also known as concertina coil) is a high-security fencing product manufactured from galvanized steel strip with sharp razor blades at regular intervals along a high-tensile core wire. Available in two primary profiles — BTO-22 (0.5mm blade thickness, 34mm barb spacing) and CBT-65 (0.6mm blade thickness, 100mm barb spacing) — our razor wire products meet ASTM F1910-98(2018) and ISO 1461 hot-dip galvanizing standards. Core wire diameters range from 2.0mm to 4.0mm with galvanizing options from 60-80 g/m² for temporary use to ≥245 g/m² for coastal and aggressive environments. Coil diameters include 450mm, 500mm, 600mm, 700mm, and 960mm in single coil or cross-type configurations. Custom blade profiles (BTO-10, BTO-30, CBT-60) and powder coating finishes are available upon request. Haobo Metal supplies razor barbed wire to security contractors, government agencies, correctional facilities, and industrial clients across the Middle East, South Asia, Africa, and Latin America.
Razor Barbed Wire
High-security razor barbed wire (concertina coil) manufactured from hot-dip galvanized steel strip. BTO-22 and CBT-65 profiles available. Core wire 2.0-4.0mm, galvanizing 60-245g/m². ASTM F1910 / ISO
Get Factory-Direct Pricing Today
Custom sizes, coatings, and quantities available. Fast FOB Tianjin shipping worldwide.
Quality Assurance
Every product undergoes rigorous testing and quality control before shipment. We test for tensile strength, zinc coating weight, dimensional accuracy, and weld integrity to ensure compliance with international standards.
Material Testing
Raw materials tested for tensile strength, elongation, and chemical composition before production
Process Control
In-line quality checks during wire drawing, weaving, welding, and coating processes
Final Inspection
100% visual inspection plus random sampling for dimensional and mechanical property testing
Third-Party Certification
SGS, BV, and other accredited labs available for independent verification upon request
Need a Quote for Your Project?
Factory-direct pricing. Custom specs. FOB Tianjin. Response within 24 hours.
Common Applications
- Perimeter security for military bases and government facilities
- Border control and immigration barrier systems
- Prison and correctional facility security fencing
- Industrial site and warehouse perimeter protection
- Airport and seaport restricted area fencing
- Residential compound and gated community security
- Power plant, substation, and critical infrastructure protection
Coil Weight & Length Reference
\n| Coil Type | \nBlade Thickness | \nCoil Diameter | \nLength per Coil | \nApprox. Weight | \n
|---|---|---|---|---|
| Single Coil | 0.3 mm | 450 mm | 8 / 10 / 12 m | 4.0 / 5.0 / 6.7 kg |
| Single Coil | 0.3 mm | 500 mm | 10 m | 5.5 kg |
| Cross-Type | 0.45 mm (High-Zinc) | 450 / 500 mm | 10 m | 6.6 kg |
| Cross-Type (BTO-22) | 0.5 mm | 500 / 600 mm | 8–12 m (per spec) | 6–10 kg |
| Cross-Type (CBT-65) | 0.6 mm | 500 / 700 / 960 mm | 8–15 m (per spec) | 7–12 kg |
Note: Weights and lengths are approximate and vary by coil diameter, blade profile, and stretching tension. Contact us for exact specifications for your project.
\nReady to Order? Get Your Custom Quote
Specify dimensions, wire diameter, and coating grade. We deliver worldwide.
Frequently Asked Questions
What is the difference between BTO-22 and CBT-65 razor wire?
BTO-22 features tightly packed blades at 34mm spacing, creating a dense, intimidating barrier ideal for prison perimeters and high-security facilities. CBT-65 has larger blades at wider 100mm spacing, covering more linear distance per coil — better suited for long perimeter runs and border security. BTO-22 maximizes deterrence per meter; CBT-65 maximizes coverage per coil. Both are manufactured to ASTM F1910 standards with identical galvanizing options.
What galvanizing grade should I choose for my environment?
For temporary or short-term installations, 60-80 g/m² zinc coating is sufficient. For general perimeter security in non-coastal areas, ≥120 g/m² (ASTM A90/A90M Class 1) is standard. For coastal, tropical, or high-humidity environments, ≥245 g/m² (ISO 1461 Class 3) is strongly recommended to prevent premature corrosion. Powder coating over galvanized wire provides an additional barrier layer and color options (green, black, grey).
Which coil diameter should I select for my project?
450mm coils are compact for wall-top installations and narrow perimeters. 500mm is the standard for general security fencing. 600mm provides medium-level deterrence for industrial sites. 700mm is heavy-duty for high-security and border control. 960mm offers maximum deterrence for military-grade applications. Cross-type (double coil) configurations provide approximately 1.5x the coverage width of a single coil at the same diameter.
How many linear meters does one coil cover?
A standard single coil covers approximately 10-15 linear meters when stretched to operational diameter, depending on coil diameter and tension. A 500mm single coil typically covers ~12m at operational tension. Cross-type coils cover ~8-10m per coil. For accurate coverage calculations, contact us with your perimeter length and required coil diameter.
What is the weight per coil for different specifications?
Weight varies by blade thickness, coil diameter, and coil type. A single coil at 0.3mm / 450mm diameter weighs approximately 4-7 kg depending on stretched length. A cross-type high-zinc coil at 0.45mm / 500mm weighs approximately 6.6 kg per 10m length. BTO-22 (0.5mm blade) cross-type coils typically weigh 6-10 kg. CBT-65 (0.6mm blade) larger diameter coils can reach 7-12 kg. Refer to the weight reference table above or contact us for exact specifications.
Why choose hot-dip galvanized over stainless steel razor wire?
Hot-dip galvanized (≥120 g/m²) razor wire provides excellent corrosion resistance at a significantly lower cost than stainless steel. It is the industry standard for border control, military, and correctional facilities worldwide. For coastal or highly corrosive environments, high-zinc galvanizing (≥245 g/m²) or a powder coating over galvanized wire offers protection comparable to 201 stainless steel at a fraction of the cost. 304 stainless steel is available for extreme marine environments but is not recommended for standard applications due to cost.
What international standards and certifications does your razor wire meet?
Our razor barbed wire conforms to ASTM F1910-98(2018) for manufacturing specifications, ISO 1461 for hot-dip galvanizing quality, ASTM A90/A90M for zinc coating weight verification, ASTM A370/ISO 6892 for core wire tensile testing, and ASTM B117/ISO 9227 for salt spray corrosion resistance. Material Test Certificates (MTC) and mill test reports are provided with every shipment. Third-party inspection (SGS, BV, TUV) is available upon request.
What is the minimum order quantity and typical lead time?
Standard MOQ is 100 coils (approximately one pallet). Larger orders benefit from container-optimized pricing. Lead time is typically 10-15 days for standard specifications, 15-25 days for custom profiles or coatings. We ship FOB Tianjin or CIF to major ports worldwide. Container loading capacity: approximately 2,500-3,500 coils per 20ft container, depending on coil diameter. Contact us for project-specific quotations and shipping estimates.
