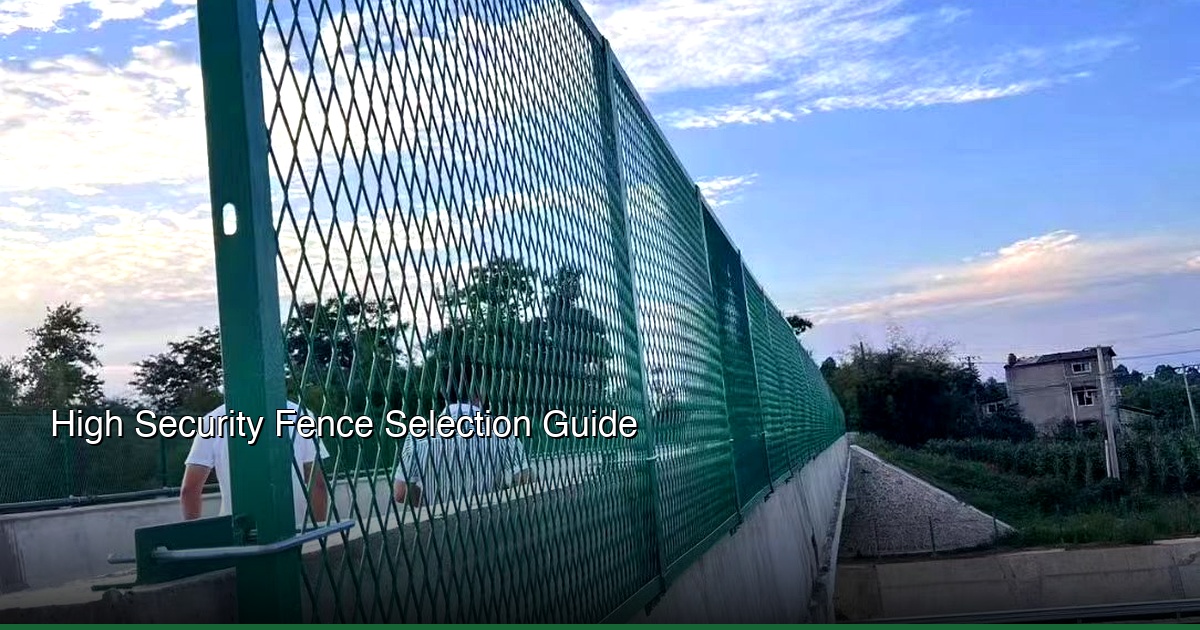

High Security Welded Wire Mesh Fence Selection Guide

Selecting the right welded wire mesh fence for a security application is a decision that impacts safety, budget, and operational continuity for decades. The wrong choice — whether too weak, too short, or inadequately coated — creates vulnerabilities that are expensive to retrofit. This guide provides a systematic framework for evaluating and selecting high security welded wire mesh fencing systems, covering threat assessment, material specifications, and total cost of ownership analysis.

1. Understanding Security Levels and Threat Assessment

Security fencing is not one-size-fits-all. The first step in any fencing project is defining the threat level — what are you protecting against, and what is the consequence of a breach? This determines every subsequent specification, from wire diameter to fence height to coating type.

Security Classification Framework

Security Level	Threat Description	Typical Application	Min. Wire Dia.	Min. Height
Level 1 (Low)	Casual intrusion, opportunistic	Residential, agricultural	2.5mm	1.8m
Level 2 (Medium)	Determined intruder, hand tools	Commercial, industrial sites	4.0mm	2.4m
Level 3 (High)	Organized, power tools	Critical infrastructure, prisons	5.0mm	3.0m
Level 4 (Maximum)	Professional, vehicle breach	Military, nuclear, government	6.0mm+	3.6m+

Threat Assessment Factors

Before selecting a fence system, conduct a structured threat assessment covering:

• Asset value: What is being protected? Higher value assets justify higher security levels
• Intrusion motivation: Opportunistic theft vs. organized crime vs. terrorism — each requires different defensive measures
• Consequence of breach: Financial loss, safety risk, national security impact
• Site conditions: Urban vs. remote, visibility, lighting, proximity to public access
• Response time: How quickly can security personnel respond? Slower response requires stronger physical barriers
• Regulatory requirements: Insurance mandates, government regulations, industry standards (e.g., BS 1722-14, ASTM F2408)

2. Welded Wire Mesh Fence Types Comparison

Welded wire mesh fencing comes in several configurations, each optimized for different applications. Understanding the strengths and limitations of each type is essential for making the right selection.

3D Curved Panel Fence (V-Beam)

The most common welded wire mesh fence type, featuring horizontal V-shaped beams that provide rigidity without requiring heavy posts. The curves increase the panel's resistance to bending and impact, allowing wider post spacing (2.5-3.0m) compared to flat panels.

• Best for: Commercial sites, sports facilities, schools, public infrastructure
• Panel dimensions: 2.0-2.4m height × 2.5-3.0m width
• Wire diameter: 3.5-6.0mm
• Mesh sizes: 50×200mm, 100×200mm, 50×50mm
• Rigidity: High — V-beams provide excellent wind and impact resistance

Flat Panel Fence

Simple, clean aesthetic with no V-beams. Requires closer post spacing (2.0-2.5m) for equivalent rigidity. Preferred when visual appearance is prioritized over maximum strength.

• Best for: Residential, decorative, light commercial
• Panel dimensions: 1.8-2.4m height × 2.0-2.5m width
• Wire diameter: 2.5-4.5mm
• Mesh sizes: 50×50mm to 200×50mm

358 Anti-Climb Security Fence

The gold standard for high security applications. Features tight mesh apertures (76.2×12.7mm, commonly called "358" for 3" × 0.5" × 8 gauge) that make it virtually impossible to climb or cut with hand tools. The small mesh also prevents the insertion of bolt cutters or other tools.

• Best for: Prisons, military bases, airports, power plants, border security
• Panel dimensions: 2.4-3.6m height × 2.5-3.0m width
• Wire diameter: 4.0-6.0mm
• Mesh size: 76.2×12.7mm (standard 358) or 12.5×76.2mm
• Anti-climb rating: Excellent — fingers cannot grip, toes cannot find footholds
• Anti-cut rating: Excellent — tight mesh prevents tool insertion

Fence Type	Anti-Climb	Anti-Cut	Aesthetics	Cost Index
3D V-Beam Panel	Good	Good	Excellent	1.0× (baseline)
Flat Panel	Fair	Fair	Excellent	0.8×
358 Anti-Climb	Excellent	Excellent	Good	1.5×
Double-Skin 358	Maximum	Maximum	Fair	2.2×

3. Material Specifications and Coating Options

The steel wire and its protective coating determine the fence's service life. Selecting the right coating for the environment is as important as choosing the right wire diameter — a thick wire that rusts through in 5 years provides less security than a thinner wire that lasts 30 years.

Steel Wire Specifications

• Tensile strength: 350-550 N/mm² for low carbon wire, 600-900 N/mm² for high tensile wire. High tensile wire provides greater cutting resistance per unit diameter.
• Yield strength: Minimum 350 N/mm² for structural applications
• Elongation: Minimum 8% for formability during welding
• Wire diameter tolerance: ±0.04mm for diameters up to 5.0mm

Coating Systems

Coating Type	Min. Coating Mass	Service Life	Environment
Electro-galvanized	20-50 g/m²	5-8 years	Indoor / dry
Hot-dip galvanized	245 g/m² (Class A)	15-20 years	Rural / urban (C1-C3)
Galfan (Zn-5%Al)	255 g/m²	40-50 years	Marine / industrial (C4-C5)
Galvanized + PVC	245 g/m² Zn + 0.5mm PVC	25-30 years	All environments
Galfan + PVC	255 g/m² Zn-Al + 0.5mm PVC	50+ years	Maximum protection

The economic analysis is clear: while Galfan coating costs 15-20% more than standard galvanizing upfront, the 3x service life means the total cost per year of protection is significantly lower. For projects with design lives exceeding 20 years, Galfan is always the more economical choice.

4. Height, Mesh Size, and Wire Diameter Design

Three geometric parameters define a fence's security performance: height determines climb difficulty, mesh size determines grip and tool access, and wire diameter determines cut resistance. All three must work together — a tall fence with large mesh and thin wire is easily breached.

Height Guidelines

Fence height directly correlates with the time and effort required to climb over. Industry standards and regulations provide minimum height requirements:

• 1.8m: Minimum for boundary demarcation and low-security applications
• 2.4m: Standard for commercial and industrial sites — exceeds typical human reach
• 3.0m: High security — requires significant effort and time to scale, increasing detection probability
• 3.6m+: Maximum security — combined with anti-climb toppings, creates formidable barrier

For applications requiring enhanced security without increasing fence height, consider:

• Anti-climb toppings: Barbed wire arms, razor ribbon, rotating spike rollers
• Outrigger brackets: Extend the fence top outward at 45 degrees
• Crash-rated bollards: Prevent vehicle breach in front of the fence line

Mesh Size Selection

Mesh aperture determines both anti-climb and anti-cut performance. The smaller the aperture, the harder it is to gain a handhold or insert cutting tools:

Mesh Size	Anti-Climb	Anti-Cut	Visibility	Application
200×50mm	Fair	Poor	Excellent	Low security, decorative
100×50mm	Good	Fair	Good	Commercial, sports
50×50mm	Good	Good	Fair	Industrial, general security
76×12.7mm (358)	Excellent	Excellent	Fair	High security, prisons

Wire Diameter Guidelines

Wire diameter determines the fence's resistance to cutting, bending, and impact. Thicker wire is always stronger, but also heavier and more expensive. The key is matching wire diameter to the security level:

• 2.5-3.5mm: Low security. Can be cut with standard bolt cutters. Suitable for boundary marking and aesthetic fencing.
• 4.0-5.0mm: Medium security. Requires heavy-duty bolt cutters or angle grinder. Standard for commercial applications.
• 5.0-6.0mm: High security. Difficult to cut even with power tools. Used for critical infrastructure.
• 6.0mm+: Maximum security. Combined with tight 358 mesh, creates nearly impenetrable barrier.

5. Installation Considerations and Accessories

Even the highest quality fence panel will fail if installed poorly. Post depth, concrete quality, and proper accessory selection are as important as the panel specifications themselves.

Post Specifications

Post Type	Specification	Embedment Depth	Concrete Volume
Round post	Ø48-60mm × 2.0mm wall	600-800mm	0.02-0.03 m³
Square post	60×40mm × 2.0mm wall	600-800mm	0.02-0.03 m³
Heavy-duty SHS	80×80mm × 3.0mm wall	800-1000mm	0.04-0.06 m³

Essential Accessories

• Post caps: Prevent water ingress into hollow posts. Available in plastic (economy) or metal (durability).
• Panel clips: Secure panels to posts. Security clips require special tools to remove — prevents unauthorized panel removal.
• Wire ties: Galvanized wire for additional panel-to-post securing. Minimum 2.0mm diameter.
• Gate hardware: Hinges, latches, and locks rated for the gate weight and usage frequency. Heavy-duty gates require industrial-grade hardware.
• Tension bars: Vertical bars inserted at panel ends and gate posts to maintain panel tension.
• Ground stakes: Prevent animals from digging under the fence. Required for agricultural and wildlife applications.

6. Cost Analysis and Total Cost of Ownership

The cheapest fence is rarely the most economical. Total Cost of Ownership (TCO) considers initial cost, maintenance, replacement, and the cost of security breaches over the fence's service life.

Initial Cost Breakdown

Cost Component	Share of Total	Notes
Fence panels	35-45%	Largest single cost; varies by spec
Posts and hardware	15-20%	Often underestimated
Concrete and installation	25-35%	Labor-intensive; varies by terrain
Gates and access control	10-15%	Often custom-fabricated
Shipping and logistics	5-10%	Container shipping from China

20-Year TCO Comparison

Comparing three specification levels over a 20-year period for a 500m perimeter (typical industrial site):

Specification	Initial Cost	Maintenance	Replacement	20-Year TCO
Economy (Galv, 3.5mm)	$8,500	$4,000	$9,000	$21,500
Standard (Galv, 4.5mm)	$12,000	$2,000	$0	$14,000
Premium (Galfan, 5.0mm)	$15,500	$500	$0	$16,000

The economy option appears cheapest upfront but costs 35% more over 20 years due to early replacement. The premium Galfan option costs 29% more initially but requires zero replacement and minimal maintenance — making it the most economical choice for long-term projects.

For projects requiring factory-direct pricing on welded wire mesh fencing systems, Haobo Metal offers complete packages including panels, posts, hardware, and accessories. Our Galfan-coated fencing is backed by ISO 9001:2015 quality certification and CE marking for European compliance.
