Massive Gabion Mesh Production: 50,000㎡ Export Order for Southeast Asia

Massive Gabion Mesh Production: 50,000㎡ Export Order for Southeast Asia

At Haobo Metal, we are currently in the final production phase of a major export order — 50,000 square meters of galvanized gabion mesh destined for a riverbank protection project in Southeast Asia. This order represents one of our largest single shipments of the year and showcases our factory's production capacity and quality management capabilities.

Order Specifications

  • Product — Hexagonal double-twist gabion mesh rolls
  • Quantity — 50,000 square meters (approximately 200 metric tons of wire)
  • Wire Diameter — 2.7mm
  • Mesh Opening — 80×100mm
  • Coating — Hot-dip galvanized, 245g/m² zinc coating
  • Roll Dimensions — 2.0m width × 30m length per roll
  • Destination — Port of Tanjung Priok, Jakarta, Indonesia

Production Timeline

This order is being manufactured in three production batches over a six-week period:

  • Batch 1 (Weeks 1-2) — 18,000m² of wire mesh, quality inspection completed, ready for container loading.

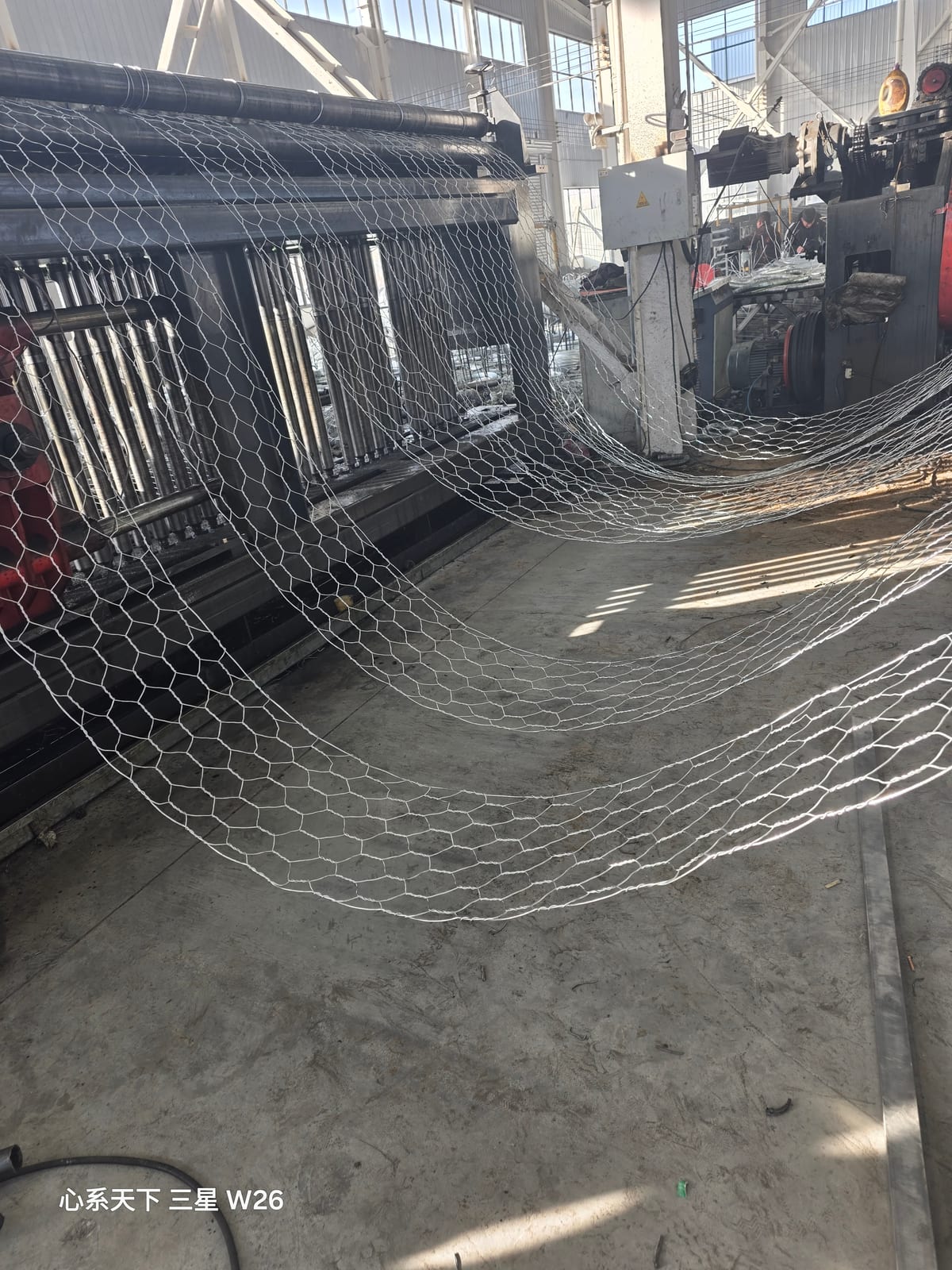

  • Batch 2 (Weeks 3-4) — 17,000m², currently in production on our automated double-twist weaving machines.
  • Batch 3 (Weeks 5-6) — 15,000m², raw material preparation and wire drawing in progress.

Quality Assurance at Every Stage

Every production batch undergoes comprehensive quality testing before shipment:

  • Raw Material Testing — Tensile strength verification of incoming steel wire rod (target: 450-550 N/mm²).
  • Wire Diameter Inspection — Continuous monitoring with digital micrometers (tolerance: ±0.05mm).
  • Mesh Opening Verification — Sample testing every 500 meters (tolerance: ±5%).
  • Zinc Coating Weight — Destructive testing per ISO 1461 standard (minimum: 245g/m²).
  • Tensile Test — Final product tensile strength: 400-500 N/mm² (tested per ISO 6892).

Logistics and Export Documentation

Our logistics team handles the complete export process, including:

  • Container loading optimization — typically 5,000-6,000m² per 20GP container
  • Export packing list, commercial invoice, and certificate of origin
  • Mill test certificates and third-party inspection reports (SGS available upon request)
  • Customs declaration and export clearance
  • Booking confirmation with shipping line and bill of lading coordination

Export Capacity

With five automated weaving lines and two hot-dip galvanizing baths operating in two daily shifts, our factory can produce up to 200,000 square meters of gabion mesh per month. Combined with our established relationships with freight forwarders and shipping lines, we can reliably deliver large orders to any global destination within agreed timeframes.

Whether you need a small trial order or a multi-container project supply, Haobo Metal has the production capacity, quality systems, and logistics expertise to deliver on time and to specification. Contact us for a competitive quotation on your next project.
