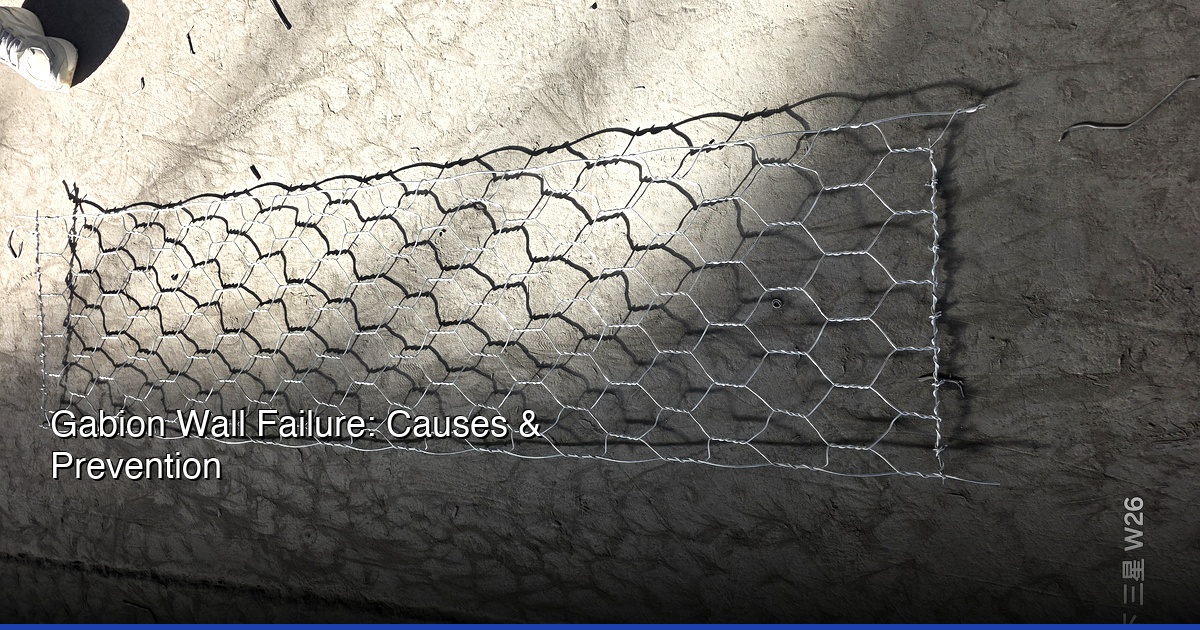

Gabion Wall Failure: Common Causes and How to Prevent Them

Gabion walls are engineered structures that, when properly designed and constructed, provide decades of reliable service with minimal maintenance. However, when shortcuts are taken in design, materials, or construction, the results can be catastrophic — not just costly repairs, but potential safety hazards. This guide examines the most common causes of gabion wall failure, drawing on field investigation data from 50+ projects worldwide, and provides actionable prevention strategies for engineers, contractors, and project owners.

1. Common Gabion Wall Failure Modes

Gabion walls can fail in several distinct ways, each pointing to different root causes. Understanding these failure modes is the first step in both diagnosing existing problems and preventing them in new construction.

Bulging and Deformation

The most visible failure mode is bulging — the wire mesh face pushes outward, creating an uneven, wavy surface. This is not just an aesthetic problem; it indicates that the internal stone fill is rearranging and the wire mesh is being stressed beyond its design capacity.

Primary causes of bulging:

• Oversized stone fill: Stones larger than 2/3 of the mesh aperture create point loads that stress the wire beyond its elastic limit
• Rounded stones: River-washed rounded stones have less interlock than angular crushed stone, allowing internal movement under load
• Insufficient wire diameter: Wire thinner than the specified diameter reduces the mesh's resistance to outward pressure
• Poor lacing: Inadequate lacing between baskets allows individual baskets to deform independently
• Overfilling: Overfilled baskets put continuous outward pressure on the mesh face

Overturning

Overturning occurs when the wall rotates about its toe — the entire structure leans outward and eventually collapses. This is a stability failure, meaning the wall's geometry is inadequate to resist the lateral earth pressure behind it.

Failure Mode	Root Cause	Frequency	Severity
Bulging / deformation	Stone quality, wire mesh	Very common (35%)	Moderate
Overturning	Base width too narrow	Common (20%)	Severe
Settlement	Foundation failure	Common (20%)	Severe
Wire corrosion	Inadequate coating	Common (15%)	Progressive
Sliding	Insufficient base friction	Uncommon (5%)	Severe
Internal rupture	Diaphragm failure	Rare (5%)	Severe

Settlement

Settlement manifests as vertical depression in the wall crest or differential movement between adjacent baskets. It occurs when the foundation soil compresses under the wall's weight or when soil is washed out from beneath the wall through piping.

Wire Corrosion

Wire mesh corrosion is a progressive failure mode — it starts slowly and accelerates as more wire surface is exposed. The first sign is white rust (zinc oxidation), followed by red rust (steel corrosion), and finally wire breakage. Once wires start breaking, the mesh loses tensile strength rapidly and the wall can fail catastrophically.

2. Design Errors That Cause Failure

Design errors are the most expensive mistakes because they are built into every aspect of the project. No amount of quality construction can compensate for a fundamentally flawed design. The most common design errors leading to gabion wall failure are:

Insufficient Base Width

The single most common design error is specifying a base width that is too narrow for the wall height. The base width determines the wall's resistance to overturning and sliding — narrower bases are less stable.

Wall Height	Min. Base Width (0.5H)	Recommended (0.7H)	Basket Tiers
1.0m	0.5m	0.7m	1 tier
2.0m	1.0m	1.4m	2 tiers (stepped)
3.0m	1.5m	2.1m	3 tiers (stepped)
4.0m	2.0m	2.8m	4 tiers (stepped)

Inadequate Stability Analysis

Every gabion retaining wall must be verified for four stability modes per BS 8002 or EN 1997:

• Overturning safety factor (FoS ≥ 2.0): The wall must resist rotation about its toe under maximum design earth pressure
• Sliding safety factor (FoS ≥ 1.5): The wall must resist horizontal translation under lateral earth pressure
• Bearing capacity (FoS ≥ 3.0): The foundation soil must support the wall's weight without excessive settlement
• Global stability (FoS ≥ 1.5): The slope containing the wall must not experience deep-seated failure

Missing Geotextile Filter

A geotextile filter fabric must be installed between the gabion wall and the retained soil. Without it, fine soil particles migrate through the stone fill — a process called "piping" — causing progressive settlement behind the wall and eventual loss of support. This is a slow but relentless failure mechanism.

Improper Drainage Design

Gabion walls are free-draining by design, but the drainage system must be properly engineered. Common drainage errors include:

• Missing or inadequate toe drain
• Insufficient stone fill permeability (too many fines in the fill)
• Blocked weep holes due to poor geotextile installation
• No surface drainage diversion above the wall crest

3. Material Defects and Quality Issues

Even a perfect design will fail if the materials don't meet specification. Gabion wall materials — wire mesh, stone fill, and geotextile — each have critical quality parameters that must be verified.

Wire Mesh Quality

Parameter	Standard Requirement	Common Defect	Consequence
Wire diameter	2.7mm ±0.04mm	Undersized (2.5mm)	Reduced tensile strength, mesh elongation
Zinc coating	≥245 g/m² (Class A)	Low coating (< 200 g/m²)	Premature corrosion, wire breakage
Mesh aperture	80×100mm ±5%	Irregular / oversize	Stone loss, structural weakness
Tensile strength	350-550 N/mm²	Low carbon steel	Mesh deformation under load

Stone Fill Quality

The stone fill is not just dead weight — it provides the structural integrity of the wall through interlock and friction. Poor stone quality is a leading cause of wall deformation.

• Stone size: 100-200mm typical. Maximum size should not exceed 2/3 of mesh aperture (67mm for 80×100mm mesh). Stones larger than this create point loads on the wire.
• Stone shape: Angular crushed stone is preferred over rounded river stone. Angular faces interlock, creating a stable internal structure. Rounded stones roll and shift under load.
• Stone grading: Well-graded fill (mix of sizes) packs more densely than uniform-size fill. However, too many fines (< 20mm) reduce permeability and can clog the drainage path.
• Stone durability: Must resist weathering. Acceptable types include granite, basalt, limestone (density > 2.5 t/m³). Avoid soft sandstone or shale.
• Frost resistance: In cold climates, stone must pass frost susceptibility tests (no more than 1% weight loss after 12 freeze-thaw cycles).

4. Construction Mistakes to Avoid

Construction quality is where good designs meet reality. Even with perfect design and materials, poor construction practices will compromise wall performance. Based on field investigations, the following are the most consequential construction mistakes:

Foundation Preparation

• Excavation depth: Foundation must be excavated to competent, undisturbed soil or bedrock. Minimum embedment 300mm below finished ground level.
• Soil compaction: Foundation soil must be compacted to ≥95% of maximum dry density (Modified Proctor). Loose foundation soil will settle under wall weight.
• Leveling layer: A 100-150mm compacted crushed stone leveling course provides uniform support for the first basket tier.
• Bearing verification: For walls over 3m, verify foundation bearing capacity with field testing (plate load or DCP).

Basket Assembly

• Wire tying: All edges must be laced with binding wire at 100mm intervals. Pre-formed spirals are preferred over individual wire ties for speed and consistency.
• Diaphragm installation: Internal diaphragms (partitions) must be installed at 1m intervals and securely tied to the basket floor and sides. Missing or loose diaphragms allow stone to migrate within the basket.
• Corner stiffness: All corners must be squared and properly tied. Rounded or collapsed corners reduce the basket's structural integrity.
• Empty basket placement: Baskets must be placed in their exact final position before filling. Moving a partially filled basket distorts the mesh.

Stone Placement

• Hand packing: Stone must be hand-placed at the face — not dumped. Face stones should be placed with flat face outward for aesthetic and structural purposes.
• Fill in layers: Fill baskets in 300mm lifts, packing each layer before adding the next. This ensures uniform density and minimizes voids.
• Avoid overfilling: Fill to 25-50mm above the basket top, then compress by walking on the stone. Overfilled baskets prevent proper lid closing and put outward pressure on the mesh.
• Keep mesh clean: Remove any stones protruding through the mesh face. Protruding stones create stress concentration points.

Lacing Between Baskets

Proper lacing between adjacent baskets is critical for wall integrity — the wall must act as a monolithic structure, not a collection of individual baskets. Common lacing errors include:

• Insufficient tie spacing (should be 100mm maximum)
• Using thinner binding wire than specified
• Missing lacing on internal diaphragms between tiers
• Not lacing the basket lid to the underlying basket top

5. Environmental Factors and Weathering

Gabion walls are exposed to continuous environmental attack. Understanding the specific environmental threats at your site allows you to specify materials that will survive them.

Corrosion Environment Classification

Corrosivity Category	Environment	Required Coating	Expected Life
C1 (Very low)	Indoor / dry	Electro-galvanized	N/A (indoor)
C2 (Low)	Rural / unpolluted	Hot-dip galvanized 245g/m²	30-40 years
C3 (Medium)	Urban / industrial	Hot-dip galvanized 245g/m²	20-30 years
C4 (High)	Coastal / polluted	Galfan 255g/m²	40-50 years
C5 (Very high)	Marine splash zone	Galfan + PVC 0.5mm	50+ years

Freeze-Thaw Damage

In cold climates, water inside the stone fill expands by 9% when it freezes. Repeated freeze-thaw cycles can:

• Progressively loosen stone fill through ice jacking
• Accelerate wire coating degradation through cyclic stress
• Cause foundation heave if drainage is inadequate
• Crack low-quality stone fill, generating fines that reduce permeability

Biological Growth

Vegetation growing on gabion walls is often promoted as an aesthetic benefit, but uncontrolled root growth can:

• Displace stones, creating voids in the fill
• Penetrate and enlarge mesh openings
• Retain moisture against the wire mesh, accelerating corrosion
• Block drainage paths through the stone fill

6. Prevention Strategies and Best Practices

Preventing gabion wall failure requires a systematic approach that addresses design, materials, construction, and maintenance. Based on analysis of both successful and failed projects, the following best practices have been identified:

Design Best Practices

• Always perform formal stability calculations: Do not rely on rules of thumb. Use BS 8002 or EN 1997 design methods with appropriate safety factors.
• Specify base width ≥ 0.7H: While 0.5H is the theoretical minimum, 0.7H provides margin for construction tolerances and soil parameter uncertainty.
• Include geotextile filter in design: Specify the geotextile type, weight, and overlap requirements on the drawings.
• Design drainage system: Include toe drain, surface diversion, and weep hole details.
• Specify Galfan coating for C3+ environments: The 15-20% cost premium is justified by 3x service life.

Material Specification Best Practices

• Require material test certificates (MTC): Every batch of wire mesh must come with a verified MTC showing wire diameter, tensile strength, and zinc coating mass.
• Third-party testing: For critical projects, send samples to SGS or Bureau Veritas for independent verification.
• Stone source approval: Inspect the quarry and test stone samples before approving the fill source.
• Geotextile specification: Use non-woven geotextile with minimum weight 200 g/m² and apparent opening size (AOS) compatible with site soil.

Construction Quality Control

• Foundation inspection: Verify bearing capacity and compaction before placing any baskets.
• Basket assembly inspection: Check tying spacing, diaphragm installation, and corner squareness before filling.
• Stone placement supervision: Ensure hand-packing at the face and layer-by-layer filling.
• Lacing verification: Inspect all inter-basket lacing before backfilling.
• As-built documentation: Photograph each tier before backfilling for record purposes.

Maintenance Protocol

Maintenance Task	Frequency	Purpose
Visual inspection	Annual	Detect bulging, settlement, wire damage
Wire corrosion check	Every 5 years	Measure zinc coating thickness
Drainage inspection	After heavy rain + annual	Ensure drainage paths are clear
Vegetation control	Annual	Remove woody plants, keep small grasses
Stone replenishment	As needed	Replace stones lost through vandalism or erosion

By following these prevention strategies, gabion wall failures can be virtually eliminated. The key is treating gabion walls as engineered structures — not as simple "rock baskets" — and applying the same rigor to design, materials, and construction as any other retaining wall system.
