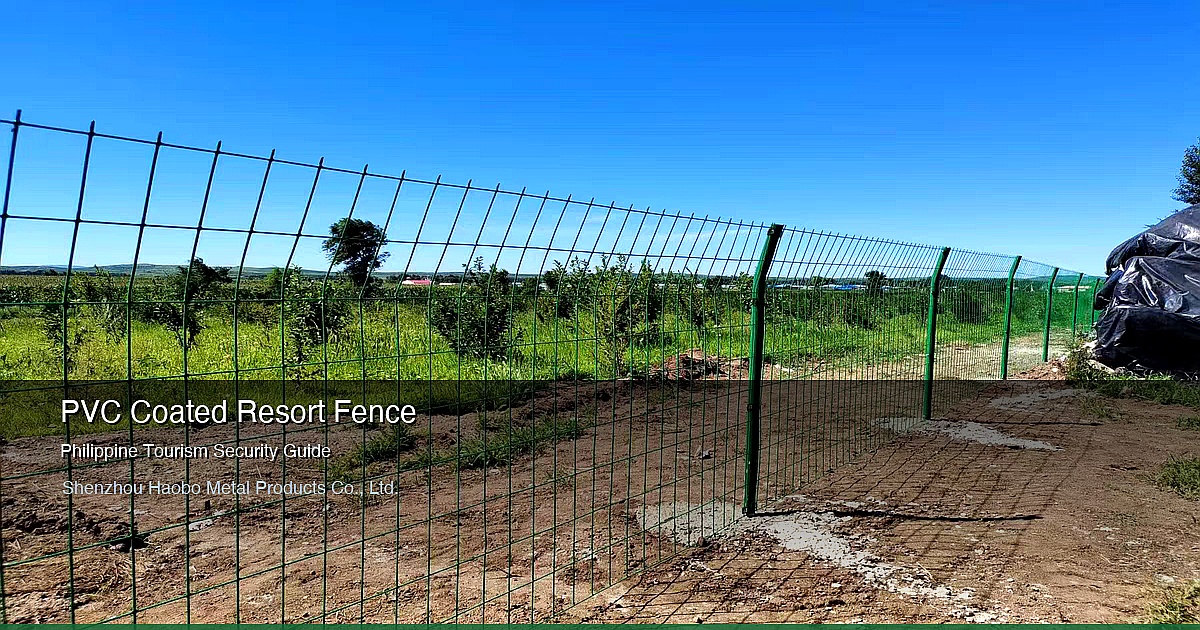

PVC Coated Welded Wire Mesh Fence for Philippine Resort Perimeters: DOT Accreditation and Typhoon Design Guide 2026

1. Philippine Resort Security: Why PVC Coated Welded Wire Mesh Is the Industry Standard

The Philippines welcomed over 5.8 million international tourists in 2019 (pre-pandemic peak), and tourism receipts contribute approximately PHP 540 billion annually to the national economy. With the Department of Tourism (DOT) targeting 10 million arrivals by 2028, the hospitality sector is undergoing a massive expansion — from beachfront resorts in Palawan and Boracay, to mountain retreats in Baguio and Tagaytay, to dive resorts in Cebu and Bohol. Every one of these properties requires perimeter security that balances three competing demands: effective intrusion prevention, aesthetic integration with the resort environment, and durability in aggressive tropical-coastal conditions.

PVC coated welded wire mesh fence has emerged as the preferred perimeter solution for Philippine resorts and hotels because it uniquely satisfies all three requirements. The welded wire mesh core provides structural rigidity and cut resistance that chain link cannot match, while the PVC coating (applied over hot-dip galvanized wire) provides superior corrosion protection in salt-laden coastal air and allows color matching with the resort's architectural palette. Unlike solid wall perimeters that block views and create a fortress appearance, mesh fencing maintains visual transparency — allowing guests to enjoy ocean or garden views while the property remains secured.

Fence Type	Security Level	Aesthetics	Coastal Durability	Cost (PHP/m)
PVC coated welded wire mesh	High	Excellent (color options)	Very Good (dual coating)	2,800 - 4,200
Galvanized chain link	Low-Medium	Poor (industrial look)	Moderate	1,200 - 1,800
358 anti-climb mesh	Very High	Good	Good	3,400 - 4,800
Concrete wall	High	Poor (fortress appearance)	Excellent	5,500 - 8,500
Wrought iron	High	Excellent	Poor (rusts in coastal air)	6,000 - 12,000

The DOT's Tourism Enterprise Accreditation standards require all accredited accommodation establishments to maintain "adequate perimeter security measures appropriate to the property's location and risk profile." While the DOT does not prescribe specific fence types, the accreditation inspection evaluates whether the security measures are functional, well-maintained, and do not detract from the guest experience. PVC coated welded wire mesh fencing, with its clean lines, color customization, and professional appearance, consistently meets these accreditation criteria while providing the security that resort operators need.

2. PVC Coated Welded Wire Mesh Specifications for Resort Applications

PVC coated welded wire mesh for resort perimeter fencing consists of a galvanized steel wire core, welded into a grid pattern, with an extruded PVC (polyvinyl chloride) coating applied over the galvanized surface. This dual-coating system — galvanized steel + PVC overlay — provides two layers of corrosion protection, making it particularly suitable for the aggressive salt-air environment of Philippine beachfront properties.

2.1 Wire and Mesh Specifications

Per GB/T 26941.1-2011 (the Chinese national standard for welded wire mesh fencing), the following specifications apply to resort-grade PVC coated mesh:

Property	Standard Resort Grade	High-Security Resort Grade	Test Standard
Core wire diameter (before PVC)	4.0 mm	5.0 mm	GB/T 26941.1-2011 Sec. 5.2
Total wire diameter (with PVC)	4.8 mm	5.8 mm	PVC coating thickness: 0.4mm
Mesh opening	50 x 200 mm (V-folded)	76.2 x 12.5 mm (358)	GB/T 26941.1-2011 Sec. 5.3
Tensile strength (core wire)	≥350 MPa	≥350 MPa	GB/T 26941.1-2011 Sec. 5.4
Zinc coating (core, min.)	275 g/m2	275 g/m2	GB/T 1839
PVC coating thickness	0.4 - 0.6 mm	0.4 - 0.6 mm	ASTM D2565 (UV resistance)
Weld strength	≥75% of wire tensile	≥75% of wire tensile	GB/T 26941.1-2011 Sec. 5.5
PVC color options	Green (RAL 6005), Black, White, Grey	Green (RAL 6005), Black	RAL color standard

The 50x200mm mesh opening with V-folded profile is the most popular configuration for resort applications. The 200mm vertical spacing provides excellent visibility through the fence — important for resorts that want to showcase ocean or garden views — while the 50mm horizontal spacing makes it difficult to gain a foothold for climbing. The V-fold (a longitudinal bend in the panel at approximately 1/3 height) adds significant rigidity, allowing wider post spacing (2.5-3.0m) compared to flat panels, which reduces the number of posts and foundations required.

2.2 PVC Coating Performance

The PVC coating is the critical differentiator for resort applications. Unlike standard galvanized mesh that begins to show white rust within 2-3 years in coastal environments, PVC coated mesh provides an impermeable barrier that completely isolates the zinc coating from the corrosive environment. The PVC compound used for outdoor fencing applications must meet the following performance criteria:

Property	Requirement	Test Method
UV resistance	No cracking or chalking after 3,000 hours QUV exposure	ASTM G154 (cycle: 8h UV / 4h condensation)
Salt spray resistance	No base metal corrosion after 2,000 hours	ASTM B117 (5% NaCl, 35 degrees C)
Adhesion to galvanized core	No peeling or separation under mandrel bend test	ASTM D522 (mandrel diameter = 4x wire dia.)
Impact resistance	No cracking at 2J impact at -10 degrees C	ASTM D2794
Color fastness	Delta E < 3.0 after 1,500 hours xenon arc	ASTM G155

For Philippine resort environments, the UV resistance requirement is particularly important. The Philippines receives some of the highest solar UV radiation levels in the world (UV Index regularly exceeds 11 during midday hours), and inferior PVC compounds will chalk, fade, and crack within 3-5 years. All PVC coated mesh supplied by Shenzhou Haobo Metal Products uses premium outdoor-grade PVC compound with UV stabilizers (hindered amine light stabilizers, HALS) that provide a minimum 15-year color retention warranty under tropical sun exposure.

3. Panel and Post System Design for Resort Perimeters

A complete PVC coated welded wire mesh fence system consists of mesh panels, posts, post caps, panel-to-post connectors, and gates. The system is designed for modular installation — panels are pre-fabricated to standard widths and attached to posts using security clips or anti-vandal connectors that cannot be removed without specialized tools.

3.1 Panel Dimensions

Panel Size (W x H)	Wire / Mesh	V-Fold	Typical Application
2.5 x 1.8 m	4.0mm / 50x200mm	Yes	Standard resort perimeter
2.5 x 2.0 m	4.0mm / 50x200mm	Yes	Enhanced security perimeter
2.5 x 2.4 m	4.0mm / 50x200mm	Yes (double V)	High-security perimeter
2.5 x 3.0 m	5.0mm / 50x200mm	Yes (double V)	Maximum security / privacy
3.0 x 2.0 m	4.0mm / 50x200mm	Yes	Wide-post-spacing economy

The 2.5 x 2.0m panel with V-fold and 4.0mm wire is the most common specification for Philippine resort perimeter fencing. This configuration provides a 2.0m fence height (meeting most resort security requirements), adequate rigidity for 2.5m post spacing, and a balance of cost and performance that suits the majority of resort applications. For resorts in high-security risk areas (e.g., properties that have experienced trespassing incidents), the 2.4m height with double V-fold provides additional climbing resistance at approximately 20% cost premium.

3.2 Post Specifications

Posts for PVC coated mesh fence systems are typically galvanized steel tubes with PVC coating matching the panel color. The post section must be sufficient to resist wind loading (per NSCP 2015) and impact loading from accidental collisions. For Philippine resort installations, the following post specifications are recommended:

Post Type	Section (mm)	Wall Thickness	Spacing	Application
Round tube (standard)	60 mm dia.	2.0 mm	2.5 m	Standard resort perimeter
Round tube (heavy)	76 mm dia.	2.5 mm	2.5 m	Wind Zone III-IV (coastal)
Square tube (standard)	60 x 40 mm	2.0 mm	2.5 m	Aesthetic preference (square)
Square tube (heavy)	80 x 60 mm	2.5 mm	3.0 m	High-wind coastal resorts
Gate post	100 x 100 mm	3.0 mm	Gate width	Vehicle/pedestrian gates

For beachfront resorts in Palawan, Boracay, Siargao, and other coastal locations exposed to direct typhoon winds, the heavy-duty post (76mm round or 80x60mm square, 2.5mm wall) is strongly recommended. These posts, combined with 2.5m spacing and concrete foundations (0.5m x 0.5m x 0.8m depth), have demonstrated excellent performance through multiple typhoon events, including Typhoon Odette (2021) which brought sustained winds of 175 kph to the Surigao and Palawan areas.

4. Typhoon-Resistant Design: NSCP 2015 Wind Load Compliance

The Philippines is situated in the world's most active typhoon corridor, with an average of 20 named storms per year, approximately 8-9 of which make landfall. The National Structural Code of the Philippines (NSCP 2015) defines four wind zones with ultimate design wind speeds ranging from 250 kph (Zone I, inland Mindanao) to 350 kph (Zone IV, Eastern Visayas and Bicol Region). All perimeter fence structures must be designed to resist the wind pressures generated by these design wind speeds.

4.1 Wind Load Calculation

For a typical 2.0m-high mesh fence panel, the wind load calculation per NSCP 2015 Section 207 is as follows:

p = qz x Cf x G
where:
p = design wind pressure (Pa)
qz = velocity pressure at height z (Pa)
Cf = force coefficient (1.2 for mesh fence with 50% porosity)
G = gust effect factor (0.85 for rigid structures)

For a fence in Wind Zone II (250 kph ultimate, e.g., Cebu, Bohol, Negros), at 2.0m height:

• qz = 0.613 x V^2 x Kz x Kd x Kzt = 0.613 x (250 x 0.85)^2 x 0.87 x 0.85 x 1.0 = 5,780 Pa
• p = 5,780 x 1.2 x 0.85 = 5,895 Pa ≈ 0.59 kPa
• Wind force per panel (2.5m x 2.0m): F = 0.59 x 5.0 = 2.95 kN per panel

The 2.95 kN wind load per panel generates a bending moment at the post base of approximately 3.0 kN-m (assuming the load acts at the panel centroid, 1.0m above ground). The standard 60mm round post (2.0mm wall) has a section modulus of 6,200 mm3, giving a bending stress of 484 MPa — exceeding the yield strength of standard steel tubing (235 MPa). Therefore, in Wind Zone II and higher, heavy-duty posts (76mm, 2.5mm wall) are required, which provide a section modulus of 13,700 mm3 and a corresponding stress of 219 MPa — within acceptable limits.

4.2 Foundation Design

Wind Zone	Design Wind Speed (kph)	Post Section	Foundation Size	Depth
Zone I (inland)	250	60mm dia x 2.0mm	0.4 x 0.4 m	0.6 m
Zone II (coastal)	250	76mm dia x 2.5mm	0.5 x 0.5 m	0.8 m
Zone III (exposed)	300	76mm dia x 2.5mm	0.6 x 0.6 m	1.0 m
Zone IV (extreme)	350	80x60mm x 2.5mm	0.7 x 0.7 m	1.2 m

For beachfront installations where the fence is exposed to direct onshore winds without any shielding from buildings or vegetation, the foundation should be designed for one wind zone higher than the site classification. For example, a resort in Cebu (Zone II) with a beachfront fence directly facing the ocean should use Zone III foundations (0.6 x 0.6m x 1.0m depth) to account for the increased exposure factor. Additionally, all foundation concrete should use sulfate-resistant cement for coastal installations, as chloride and sulfate attack from saltwater spray can degrade standard Portland cement concrete within 5-10 years.

5. Corrosion Protection Strategy for Coastal Resort Environments

Philippine beachfront resorts represent one of the most aggressive corrosion environments for steel products. The combination of salt-laden air (chloride deposition rates of 500-2,000 mg/m2/day at 50m from the shoreline), high humidity (75-90% RH year-round), high temperature (28-35 degrees C), and intense UV radiation creates a perfect storm for metal degradation. The dual coating system — galvanized zinc + PVC overlay — is specifically engineered to address each of these corrosion mechanisms.

5.1 Coating System Performance

Coating System	Service Life (50m from shore)	Service Life (500m from shore)	Failure Mode
Galvanized only (275 g/m2)	8-12 years	20-25 years	Zinc consumption -> red rust
Galvanized + PVC (standard)	15-20 years	30-40 years	PVC cracking -> zinc consumption -> rust
Galfan + PVC (premium)	25-30 years	45-50+ years	PVC cracking -> slow Galfan consumption
Galvanized + powder coat	10-15 years	20-25 years	Powder coat chipping -> zinc consumption

The PVC coating acts as a primary barrier that completely isolates the galvanized zinc layer from the corrosive environment. Even if the PVC develops hairline cracks after 10-15 years of UV exposure, the underlying zinc coating provides a sacrificial barrier that continues to protect the steel core. This dual-layer redundancy is the reason why PVC coated mesh outlasts powder-coated alternatives by 50-100% in coastal environments — powder coating is harder but more brittle, tending to chip rather than crack, and once chipped, the exposed zinc layer is consumed rapidly by chloride attack.

5.2 Maintenance Recommendations for Coastal Resorts

While PVC coated mesh requires significantly less maintenance than galvanized-only alternatives, periodic care extends the service life and maintains the aesthetic appearance that resorts require:

• Annual fresh-water wash: For beachfront fences (within 100m of shore), wash the mesh and posts with fresh water every 6-12 months to remove salt crystal buildup. This is particularly important during the dry season when salt spray accumulates without being washed off by rain.
• Visual inspection: Conduct quarterly visual inspections, looking for PVC damage (cuts, gouges from equipment contact), post corrosion at the ground line, and any mesh panel deformation. Address damaged areas promptly by applying PVC repair tape or cold galvanizing compound to exposed metal.
• Vegetation management: Trim climbing plants and vines that may attach to the fence. While some resorts intentionally grow bougainvillea or other flowering plants on fences for aesthetic purposes, the root systems can penetrate the PVC coating over time, creating corrosion initiation points.
• Gate hardware maintenance: Lubricate gate hinges and latches every 3-6 months with marine-grade grease. Gate hardware is typically the first component to require replacement in coastal environments due to the mechanical wear combined with corrosion.

6. BOQ Template: 300-Meter Resort Perimeter Fence Project

The following Bill of Quantities provides a realistic cost breakdown for a 300-linear-meter resort perimeter fence project using PVC coated welded wire mesh panels. This BOQ assumes a beachfront resort in a Wind Zone II location with standard soil conditions and includes all materials, labor, equipment, and gates.

Item	Qty	Unit	Unit Price (PHP)	Amount (PHP)
PVC coated mesh panel, 2.5x2.0m, 4.0mm, 50x200mm, green RAL 6005	120	panels	2,450	294,000
Round post, 76mm dia x 2.5mm, PVC coated green, 3.0m length	122	units	1,180	143,960
Post cap, plastic, green, 76mm dia	122	units	45	5,490
Panel-to-post security clips, stainless steel	730	sets	18	13,140
Concrete, 28 MPa, for post foundations	24.4	m3	4,800	117,120
Rebar, 12mm, for foundation reinforcement	732	kg	52	38,064
Excavation, post holes, 0.5 x 0.5 x 0.8m	122	holes	180	21,960
Double swing vehicle gate, 5.0m wide, PVC coated	1	unit	38,500	38,500
Single swing pedestrian gate, 1.2m wide, PVC coated	2	units	9,800	19,600
Labor: fence installation	25	man-days	650	16,250
Equipment: auger drill, transit mixer	5	days	8,500	42,500
Subtotal				750,584
Contingency (10%)				75,058
Total (300 linear meters)				825,642

Unit cost: approximately PHP 2,752 per linear meter ($49/m) including all materials, labor, equipment, and gates. For planning purposes, Philippine resort developers can use PHP 2,600-3,200/m as a budget range for PVC coated mesh fence installations, with the actual cost depending on site conditions, fence height, gate requirements, and the extent of rock excavation needed for post foundations in coral or limestone terrain common in island resorts.

7. FOB Tianjin Pricing and Delivery to Philippine Resort Sites

Shenzhou Haobo Metal Products Co., Ltd. manufactures PVC coated welded wire mesh fence panels and posts at our factory in Hebei, China. The following pricing is current as of July 2026 and includes all manufacturing, PVC coating, quality control, and export packaging.

Item	Specification	FOB Price ($)
Mesh panel (standard)	2.5x2.0m, 4.0mm, 50x200mm, PVC green	$28.50/panel
Mesh panel (heavy)	2.5x2.4m, 5.0mm, 50x200mm, PVC green	$42.00/panel
Round post (standard)	60mm x 2.0mm x 3.0m, PVC green	$13.50/unit
Round post (heavy)	76mm x 2.5mm x 3.0m, PVC green	$21.00/unit
Post cap, plastic	76mm, green	$0.80/unit
Security clip set	Stainless steel, 4 pieces per set	$0.32/set
Vehicle gate (double swing)	5.0m wide, matching panel spec	$685.00/unit
Pedestrian gate (single swing)	1.2m wide, matching panel spec	$175.00/unit

For the 300-meter project BOQ above, the total FOB material cost is approximately $6,380 (PHP 363,600). A 20-foot container holds approximately 200 panels + 200 posts + accessories — sufficient for approximately 500 linear meters of fence. Ocean freight from Tianjin to Manila is $1,400-1,800 per 20-foot container, bringing the total FOB + freight cost to approximately $8,000 (PHP 456,000). With Philippine VAT (12%) and customs clearance, the landed cost in Manila is approximately $9,000 (PHP 513,000).

For delivery to island resort sites (Palawan, Boracay, Cebu, Bohol), additional domestic shipping from Manila is required. RORO (Roll-on/Roll-off) shipping to major island ports costs PHP 15,000-35,000 per container, depending on destination. For remote island destinations without RORO service, break-bulk shipping via inter-island cargo vessels may be required, adding PHP 25,000-50,000 to the delivery cost. The total delivered cost to a typical island resort site is approximately PHP 560,000-590,000 for the 300-meter project — still significantly less than the total installed project cost of PHP 825,642, with the difference representing local labor, concrete, rebar, and equipment costs that are sourced domestically.

Production and Delivery Timeline

Stage	Duration	Notes
Wire drawing and galvanizing	3-4 days	Steel rod to wire, hot-dip galvanizing 275 g/m2
Welding and PVC coating	5-7 days	Panel welding, V-fold forming, PVC extrusion coating
Post fabrication and PVC coating	3-4 days	Tube cutting, drilling, PVC coating
Quality inspection and packing	2 days	Dimensional, weld, and coating inspection; steel pallet packing
Container loading and export	2-3 days	Stuffing, customs clearance, port loading
Ocean freight to Manila	7-12 days	Direct or transshipment via Hong Kong/Kaohsiung
Philippine customs clearance	2-4 days	Form E (ACFTA 0% duty), VAT payment, BOC release
Domestic shipping to resort site	2-7 days	Trucking + RORO for island destinations

Total timeline from order confirmation to delivery at the resort site: 26-43 days for standard orders. For resort projects with tight construction schedules, we recommend ordering fence materials 6-8 weeks before the scheduled installation date to allow for production, shipping, customs, and any unforeseen delays. For rush orders, air freight delivery (5-7 days total) is available for small quantities (up to 50 panels) at a premium of approximately $8-12/kg air freight cost.

8. Color Selection, Aesthetic Integration, and DOT Accreditation Compliance

The visual appearance of a resort perimeter fence directly impacts the guest experience and the property's overall aesthetic impression. PVC coated welded wire mesh is available in four standard colors, each suited to different resort environments and architectural themes:

Color	RAL Code	Best For	Visual Effect
Forest Green	RAL 6005	Garden, mountain, and forest resorts	Blends with tropical vegetation, nearly invisible at distance
Black	RAL 9005	Modern, minimalist resort architecture	Sleek, contemporary appearance; high contrast with vegetation
White	RAL 9016	Mediterranean, colonial, or beach resort themes	Clean, bright appearance; requires more frequent cleaning
Grey	RAL 7016	Urban hotel, industrial-chic resort	Neutral, architectural appearance; low maintenance

For most Philippine resort applications, Forest Green (RAL 6005) is the recommended color. The dark green hue naturally blends with tropical vegetation, making the fence visually recede into the landscape rather than standing out as a man-made structure. This is particularly valuable for eco-resorts and nature-based properties where maintaining a natural visual environment is part of the guest experience. For modern resorts with minimalist architecture (e.g., concrete-and-glass designs popular in Siargao and La Union), Black (RAL 9005) provides a contemporary aesthetic that complements clean architectural lines.

DOT Accreditation Compliance

The Department of Tourism's accreditation inspection for resort properties evaluates perimeter security as part of the "Safety and Security" criteria. While the DOT does not prescribe specific fence types or heights, the inspector evaluates whether the security measures are: (a) functional and well-maintained, (b) appropriate to the property's risk profile and location, (c) aesthetically integrated with the property's design, and (d) not creating a negative visual impression for guests.

PVC coated welded wire mesh fencing consistently meets all four DOT evaluation criteria. The mesh provides a visible but non-oppressive security boundary that clearly delineates the property perimeter without creating a fortress-like appearance. The color options allow aesthetic integration with any resort design theme. The durability and low maintenance requirements ensure that the fence remains in good condition year after year, which is critical for maintaining DOT accreditation status during annual re-inspection.

For resort operators preparing for DOT accreditation or re-accreditation, we recommend including the following documentation in the security measures submission: (1) fence specification sheet (wire diameter, mesh opening, coating type, height), (2) installation plan showing perimeter coverage and gate locations, (3) maintenance schedule and inspection records, and (4) photographs of the completed installation. This documentation demonstrates to the DOT inspector that the perimeter security is professionally designed, properly installed, and actively maintained — key factors in achieving and maintaining accreditation.

For project-specific quotations, color samples, or assistance with DOT accreditation documentation, contact Shenzhou Haobo Metal Products Co., Ltd. at WhatsApp +86 15076321111 or email yangshaotian311@gmail.com. Our team can provide detailed technical specifications, installation drawings, and material certification documents tailored to your resort's specific security requirements and aesthetic preferences.
