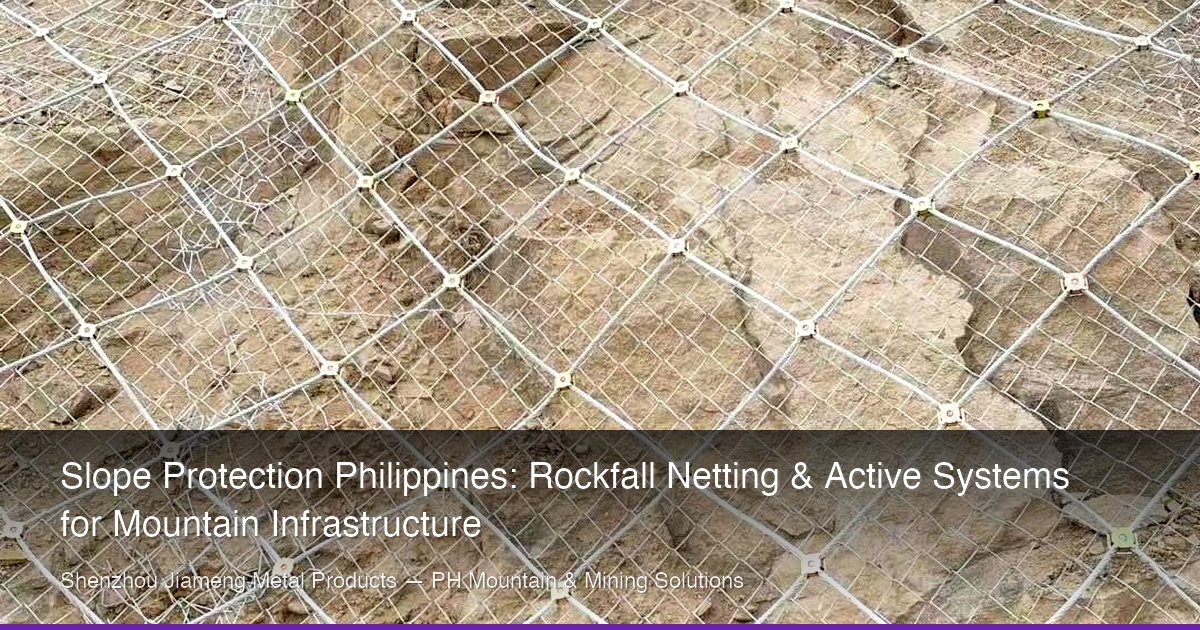

Slope Protection Philippines: Rockfall Netting & Active Systems for Mountain Infrastructure
The Philippines sits squarely on the Pacific Ring of Fire and endures an average of 20 typhoons per year. Add to that extensive mountain road networks connecting Baguio, Sagada, Bontoc, and the Cordillera mining regions — and you have one of the world's most demanding environments for slope protection engineering.
Every monsoon season, Kennon Road, Halsema Highway, and the Baguio-Bontoc Road experience landslides and rockfall events that shut down critical transport corridors. The DPWH alone allocates an estimated PHP 15-25 billion annually to slope stabilization and road safety infrastructure. Mining operations in Surigao, Benguet, Masbate, and Compostela Valley face similar challenges with pit wall stability and haul road protection under extreme rainfall.
This guide covers the complete landscape of slope protection solutions available for Philippine conditions — from active rockfall netting systems that prevent rock detachment at the source, to passive rockfall barriers that catch falling debris, to drapery systems for weathered slope faces. Every specification, standard, and cost estimate is calibrated for Philippine topography, seismicity, and climate.
- Philippine Slope Stability Challenges: Typhoons, Earthquakes & Geology
- Active vs Passive Rockfall Protection — Which System for Philippine Sites?
- Active Rockfall Netting Systems: Ring Nets, Wire Rope Nets & Hexagonal Mesh
- Passive Rockfall Barriers: Energy Ratings from 500 kJ to 8,000 kJ
- DPWH & DENR Slope Protection Standards for Philippine Projects
- Slope Protection for Philippine Mining Operations
- Installation Challenges & Best Practices for Philippine Mountain Terrain
- Cost Estimation: Slope Protection Systems Delivered to Manila
- Philippine Project Case Studies: Kennon Road, Surigao Mining & Baguio
- Philippine Project Procurement Checklist for Slope Protection Materials
1. Philippine Slope Stability Challenges: Typhoons, Earthquakes & Geology
The Philippines presents a combination of geohazards that few other countries face simultaneously:
| Hazard | Philippine Severity | Impact on Slope Protection Design |
|---|---|---|
| Typhoons & Extreme Rainfall | 20 typhoons/yr; 2,000-4,000mm annual rainfall | Pore water pressure buildup; rapid weathering of rock faces; debris flow in unconsolidated volcanic deposits |
| Seismic Activity | Seismic Zone 4; M7+ earthquakes; active faults island-wide | Slope nets must accommodate dynamic displacement without system failure; anchors must penetrate beyond potential slip surfaces |
| Volcanic & Weathered Geology | Tuff, lahar, highly weathered andesite/basalt | Low rock mass strength; anchor bond in weathered zones is design-critical; drapery systems must handle continuous small rockfall |
| Mountain Road Topography | 60-80° cut slopes; limited catchment area | Limited space for passive barriers; active systems often required at source; helicopter or manual transport for remote sites |

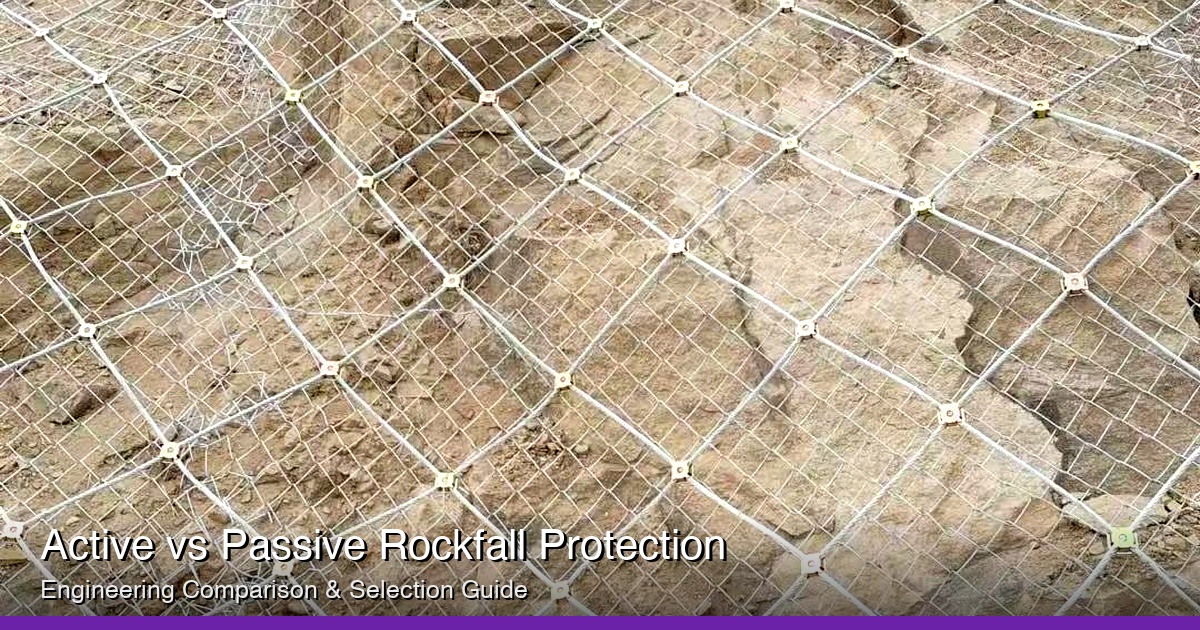

2. Active vs Passive Rockfall Protection — Which System for Philippine Sites?
| Feature | Active Netting Systems | Passive Barrier Systems |
|---|---|---|
| Principle | Prevent rock detachment at the source | Intercept and absorb energy of falling rocks |
| Best Philippine Application | Weathered cut slopes along mountain roads; mining bench faces with continuous small rockfall | Below high-energy rockfall zones (Kennon Road); quarry and mining catch benches |
| Post-typhoon performance | ✅ Excellent — contains loosened material after saturation | ⚠️ Requires maintenance clearing after major events |
| Seismic resilience | ✅ Flexible mesh accommodates deformation | ✅ Post-and-ring design has inherent flexibility |
| Cost per m² (material, FOB) | $15 – $40/m² | $80 – $250/m² (varies by energy rating) |
3. Active Rockfall Netting Systems: Ring Nets, Wire Rope Nets & Hexagonal Mesh
Active systems are the most commonly specified slope protection solution for Philippine mountain roads. They are installed directly on the slope face and secured by anchors at the crest and toe.
| Mesh Type | Wire / Rope Spec | Mesh Opening | PH Application |
|---|---|---|---|
| TECCO / High-Tensile Hexagonal | 3.0mm steel wire, 1,770 N/mm² tensile | 83mm × 143mm | General cut slope stabilization; most common DPWH spec |

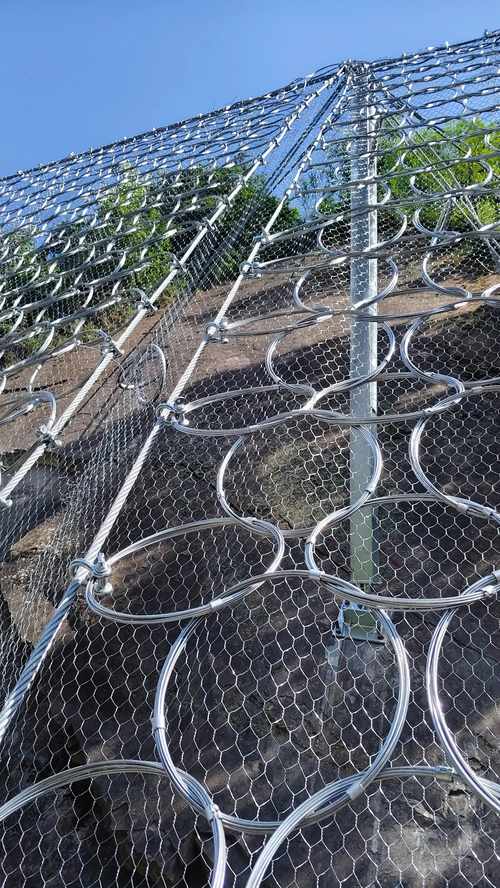

| Ring Net (ROCO / Geobrugg type) | φ 3mm wire × 19 strands per ring | 300mm ring diameter | High-energy slopes; mining benches; large block rockfall |
| Wire Rope Net (Spider) | φ 8mm steel wire rope, 1,770 MPa | 300mm × 300mm | Structural drapery; very high-energy slopes; combined with ring nets |
| Double-Twist Hexagonal | 2.7-3.0mm, HDG or Galfan | 60mm × 80mm or 80mm × 100mm | Low-energy slopes; erosion control; vegetated slope reinforcement |
Anchor Specifications for Philippine Rock
- Crest anchors: Self-drilling hollow bar, φ 32mm, minimum embedment 3.0m into competent rock (recommended 4.0-5.0m for weathered volcanic rock)
- Face anchors: Pattern spacing 2.5-3.0m × 2.5-3.0m; φ 25mm minimum
- Anchor testing: 50% of anchors pull-tested to 1.5× working load per ETAG 027
- Corrosion protection: Double corrosion protection (DCP) for permanent anchors in aggressive Philippine soils
4. Passive Rockfall Barriers: Energy Ratings from 500 kJ to 8,000 kJ
| Energy Class | Max Energy (kJ) | Ring / Post Config | Philippine Use Case |
|---|---|---|---|
| Low (500-1,000 kJ) | 500 – 1,000 | 5-7 rings; HEA 160 post | Municipal road shoulders; small cut slopes; < 2m³ block size |
| Medium (1,500-3,000 kJ) | 1,500 – 3,000 | 7-9 rings; HEA 200 post | DPWH highway protection (Kennon Road level); mining haul road benching |
| High (5,000 kJ) | 5,000 | 9-12 rings; HEA 240-300 post | Large-scale mining slope protection; Baguio-Bontoc critical infrastructure |
| Very High (8,000 kJ) | 8,000 | Special design; multi-bay systems | Extreme cases: quarry walls; volcanic flank protection |
5. DPWH & DENR Slope Protection Standards for Philippine Projects
Philippine slope protection projects must comply with a multi-agency standards framework:
| Agency / Standard | Relevance | Key Requirements |
|---|---|---|
| DPWH DO 52 s.2016 | Slope protection for national roads | Rockfall hazard rating system (RHRS); minimum protection levels by road classification |
| NSCP 2015 (National Structural Code) | Seismic design parameters | PGA 0.4g for Zone 4; soil profile types for anchor design |
| DENR DAO 2010-21 | Environmental compliance for slope works | ECC required for projects > 1ha in environmentally critical areas |
| ETAG 027 (EU) | Accepted by DPWH for rockfall kits | Full-scale crash test certification; MEL and SEL energy ratings |
| MGB (Mines & Geosciences Bureau) | Mining slope stability | Slope monitoring; engineering geological assessment; quarterly reports |
6. Slope Protection for Philippine Mining Operations
The Philippine mining sector presents unique slope protection requirements driven by both operational safety and regulatory compliance under the Philippine Mining Act of 1995 (RA 7942) and MGB regulations.
| Mining Region | Primary Commodity | Typical Slope Protection Need |
|---|---|---|
| Surigao del Norte / Surigao del Sur | Nickel laterite, gold | Pit wall stabilization in highly weathered laterite; haul road drapery |
| Benguet / Baguio | Gold, copper | Active netting on steep cut slopes; ring net barriers below tailings storage |
| Masbate | Gold | Passive barriers along access roads; drapery for weathered volcanic slopes |
| Compostela Valley | Gold, copper | High-energy barriers for pit slopes; erosion control mesh for waste dumps |
7. Installation Challenges & Best Practices for Philippine Mountain Terrain
- Access & Logistics: Many Philippine slope protection sites are accessible only by narrow mountain roads. Materials must be palletized for manual handling. Helicopter-assisted installation may be required for remote sections — budget PHP 150,000-300,000 per flight hour.
- Monsoon Scheduling: Rope access crews cannot work safely during heavy rain. The November-April dry season window is critical. Plan anchor drilling and mesh installation during these months.
- Anchor Drilling in Weathered Rock: Volcanic tuff and weathered andesite can collapse boreholes. Use self-drilling hollow bar anchors (IBO or similar) with continuous grout injection rather than conventional DTH drilling.
- Corrosion in Acidic Mining Environments: Surigao nickel laterite operations have soil pH as low as 4.0. All exposed steel components (anchor heads, connection plates, spike plates) must be HDG with minimum 610 g/m² zinc, or stainless steel Grade 316 for critical connections.
- Rope Access Certification: IRATA Level 2 or 3 technicians are mandatory for Philippine slope works. Budget PHP 8,000-15,000 per technician per day for certified rope access crews.
8. Cost Estimation: Slope Protection Systems Delivered to Manila
| System | Material Cost FOB Tianjin (USD/m²) | Installation Cost PH (PHP/m²) | Total Installed (PHP/m²) |
|---|---|---|---|
| TECCO mesh + anchors | $15 – $22 | PHP 1,200 – 2,000 | PHP 2,000 – 3,200 |
| Ring net system (R7/3/300) | $25 – $40 | PHP 2,500 – 4,000 | PHP 3,800 – 6,200 |
| Passive barrier 1,500 kJ | $120 – $180 per linear m | PHP 8,000 – 12,000/m | PHP 14,000 – 22,000/m |
| Passive barrier 3,000 kJ | $200 – $300 per linear m | PHP 12,000 – 18,000/m | PHP 22,000 – 33,000/m |
| Simple drapery (double-twist) | $5 – $10 | PHP 800 – 1,500 | PHP 1,100 – 2,100 |
USD to PHP conversion at ₱56/USD. Installation costs include rope access crew, drilling, grouting, and on-site supervision. Excludes mobilization, helicopter access, and local taxes.
9. Philippine Project Case Studies
Kennon Road Rockfall Mitigation, Benguet (DPWH-CAR, ongoing): Following the 2018 Typhoon Ompong landslides, DPWH has invested over PHP 500M in slope stabilization along the 33.7km Baguio-Rosario highway. Active TECCO mesh systems cover approximately 85,000 m² of cut slopes, supplemented by 500-3,000 kJ passive barriers at 12 critical rockfall chutes. Material supply from combined European (Geobrugg) and Chinese manufacturers.
Surigao Nickel Mining — Pit Wall Stabilization: Multiple operating mines in Surigao del Norte require continuous slope mesh coverage on final pit walls as part of the MGB Final Mine Rehabilitation and Decommissioning Plan (FMRDP). Typical specification: TECCO G65/3 mesh with IBO R32 self-drilling anchors at 3m × 3m pattern, Galfan coating for acid soil resistance. Mesh quantities: 15,000-40,000 m² per mine, replenished every 3-5 years as pits expand.
Baguio-Bontoc Road (Halsema Highway): At 2,255m elevation, this is the highest highway in the Philippines. Continuous active netting over 120,000 m² of slopes is installed between km 270-340. The extreme rainfall (up to 4,500mm/year) requires enhanced drainage integration — every net panel must include surface water diversion above the crest anchors.
10. Philippine Project Procurement Checklist for Slope Protection Materials
- ✅ Full-scale crash test certificate per ETAG 027 (for all passive barriers)
- ✅ Anchor pull-test report (pre-production testing on-site)
- ✅ Mill Test Certificate for all steel components (wire rope, mesh wire, anchors)
- ✅ Corrosion protection certificate: HDG ≥ 610 g/m² or Galfan Zn-5%Al for mining/coastal
- ✅ DPWH Materials Engineer acceptance report (for DPWH-funded projects)
- ✅ DENR Environmental Compliance Certificate (ECC) — required before any slope work in environmentally critical areas
- ✅ MGB clearance (for mining-related slope protection)
- ✅ Third-party inspection report (SGS/Bureau Veritas — pre-shipment)
- ✅ IRATA-certified installation crew documentation
- ✅ BOC import clearance: HS Code 7314.49.00 for mesh; 7312.10.00 for wire rope; 7308.90.90 for structural steel posts
Contact us with your project geotechnical report for a system-specific quotation. We supply complete slope protection packages — mesh, anchors, spike plates, connection hardware — with full Philippine regulatory documentation.
