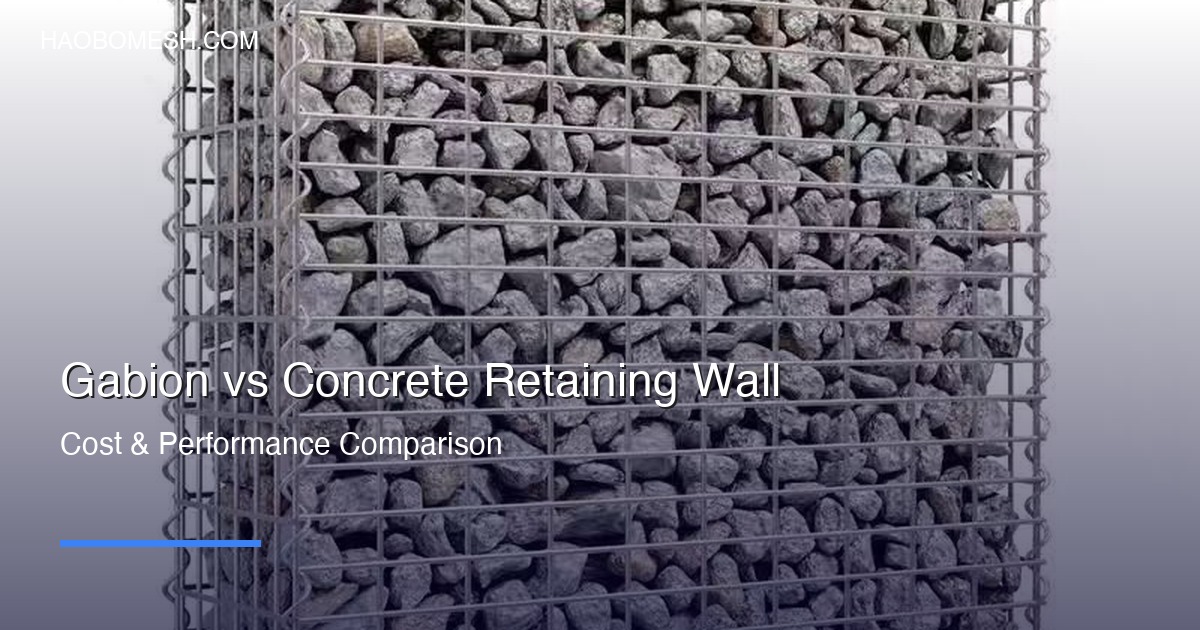

Gabion vs Concrete Retaining Wall: Complete Cost Comparison & Performance Analysis (2026)

When engineers and contractors evaluate retaining wall options, two solutions dominate the conversation: gabion walls and reinforced concrete walls. Both are proven technologies with decades of performance history. But the cost, speed, environmental footprint, and long-term behavior of these two systems differ dramatically — and the "right" answer depends entirely on your project conditions. This comprehensive comparison provides the data you need to make an informed decision.

1. Upfront Material & Construction Costs

The most immediate question for any project manager: which option costs less? Based on global project data from 2022-2026, here is a direct cost comparison for a typical 3m-high, 50m-long retaining wall:

Cost Component	Gabion Wall	Concrete Wall
Excavation & Foundation Prep	$3,500 - $5,000	$8,000 - $12,000
Materials (delivered)	$18,000 - $25,000	$15,000 - $22,000
Formwork / Shuttering	N/A (self-forming)	$6,000 - $9,000
Steel Reinforcement	N/A	$4,000 - $6,000
Stone Fill	$5,000 - $8,000	N/A
Labor (installation)	$6,000 - $9,000	$12,000 - $18,000
Total Estimated Cost	$32,500 - $47,000	$45,000 - $67,000

Key takeaway: Gabion walls typically cost 25-35% less upfront than equivalent reinforced concrete walls. The savings come from three sources: no formwork, simpler foundations (gabions tolerate differential settlement that would crack concrete), and lower skilled labor requirements.

However, gabion costs are highly sensitive to stone availability. If suitable fill stone must be transported more than 50 km, gabion costs can approach or exceed concrete costs. Always price local stone supply before making the final decision.

2. Installation Speed and Labor Requirements

Gabion walls can be installed significantly faster than concrete walls — a critical advantage for time-sensitive projects such as post-disaster reconstruction, seasonal construction windows, or phased infrastructure rollouts.

Installation speed comparison (50m x 3m wall):

• Gabion wall: 5-7 working days with a crew of 4-6 semi-skilled laborers and one excavator. No curing time required — the wall is load-bearing immediately after stone placement.
• Concrete wall: 15-25 working days including formwork erection (3-5 days), rebar installation (2-3 days), concrete pouring (1-2 days), curing period (7-14 days minimum), and formwork stripping (1-2 days). Requires skilled carpenters and steel fixers.

For projects in remote locations, the gabion advantage widens. Gabion baskets and mesh panels ship as flat-packed steel components; fill stone is sourced locally. Concrete requires bulk cement delivery, aggregate stockpiles, water supply for mixing, and reliable access for concrete trucks — all challenging logistics in developing regions or mountainous terrain.

Labor skill requirements also differ substantially. Gabion installation can be performed by local labor with minimal training — the assembly process is mechanical and repeatable. Concrete retaining walls require experienced formwork carpenters, rebar detailers, and concrete finishing crews, who may not be available locally. For international contractors operating in regions with labor constraints, this is often the deciding factor.

3. Drainage Performance and Hydrostatic Pressure

This is where gabion walls have a decisive engineering advantage: they are inherently free-draining. The stone-filled baskets allow groundwater to pass through the wall face, eliminating hydrostatic pressure buildup — the leading cause of retaining wall failure.

Concrete walls require engineered drainage systems:

• Weep holes at 1-2m spacing (often clog over time with soil fines)
• Granular drainage blanket behind the wall (300-500mm thickness)
• Perforated collector pipe at the base connected to outlet
• Filter fabric to prevent soil migration into drainage media

When any component of this drainage system fails — as it frequently does over a 20-50 year service life — hydrostatic pressure builds behind the wall. A 3m-high concrete wall with clogged drainage can experience over 45 kN/m² of hydrostatic pressure at the base, exceeding the design capacity of many walls and causing cracking, tilting, or catastrophic failure.

Gabion walls are self-draining by design. The 30-35% void ratio in the stone fill provides permanent drainage pathways. Even if the outer face becomes partially clogged with silt over decades, water can exit through the wall at any elevation. This eliminates an entire failure mode and the associated maintenance program.

4. Long-Term Maintenance and Repair Costs

Concrete wall maintenance:

• Crack sealing every 5-10 years to prevent water ingress and rebar corrosion
• Weep hole cleaning every 2-3 years in silty environments
• Expansion joint sealant replacement every 10-15 years
• Surface spalling repair after 15-20 years in freeze-thaw climates
• Estimated annual maintenance: 1-2% of initial construction cost

Gabion wall maintenance:

• Visual inspection every 2-3 years for wire integrity and stone settlement
• Vegetation management (if desired — many designs intentionally incorporate vegetation)
• Minor stone top-up if settlement occurs (rare after first year)
• Wire mesh repair only required in the event of mechanical damage (e.g., vehicle impact)
• Estimated annual maintenance: 0.2-0.5% of initial construction cost

A critical long-term advantage of gabions: damage is visible and repairable. If a gabion basket is damaged by impact or vandalism, you can see the damage immediately, cut out the affected panel, and replace it — no structural analysis required. If a concrete wall develops internal rebar corrosion, the damage is invisible until spalling appears, by which time repairs are complex and expensive.

5. Environmental Impact and Sustainability

The environmental comparison strongly favors gabions across multiple metrics:

Environmental Metric	Gabion Wall	Concrete Wall
Embodied Carbon (CO₂/m² wall face)	35-50 kg CO₂/m²	120-180 kg CO₂/m²
Habitat Integration	Excellent — voids support vegetation and fauna	Poor — impermeable barrier
Recyclability at End of Life	100% — steel recycled, stone reused	Partial — crushed concrete aggregate
Site Disturbance	Low — flexible foundation requirements	High — rigid foundation, large excavation

Gabion walls integrate with the natural environment in ways concrete cannot. The stone voids provide microhabitats for insects, reptiles, and small mammals. Over time, vegetation root systems interlock with the stone fill, further strengthening the structure. In many jurisdictions, gabions are approved for environmentally sensitive areas (wetlands, river corridors, national parks) where concrete construction would be denied.

6. When to Choose Gabion vs Concrete: Decision Matrix

For the majority of civil engineering, infrastructure, and landscaping projects in the 1-6m height range, gabion walls offer a compelling package: lower cost, faster installation, superior drainage, lower maintenance, and better environmental performance. The decision to use concrete should be driven by specific site constraints or architectural requirements — not by default.
