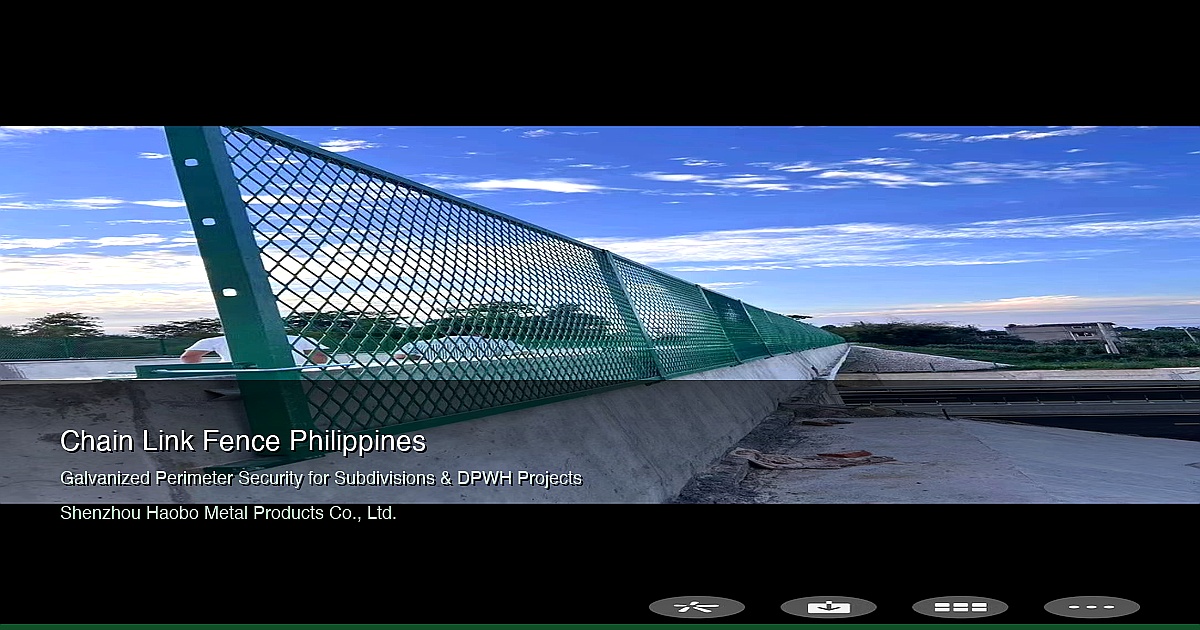

Chain Link Fence Philippines: Galvanized Perimeter Security for Subdivisions & DPWH Road Projects

Chain link fence is the most widely used perimeter security system in the Philippines — from exclusive subdivisions like Ayala Alabang to DPWH highway median barriers and PEZA-registered industrial parks. Despite its ubiquity, specification errors in wire gauge, post spacing, and coating selection cost Philippine contractors millions of pesos annually in premature corrosion and typhoon damage repairs.

This guide covers everything you need to specify, source, and install chain link fence for Philippine conditions: DHSUD minimum standards for subdivisions, DPWH highway safety requirements, PEZA industrial park perimeter specs, and tropical corrosion mitigation strategies.

1. Chain Link Fence Basics for Philippine Applications

Chain link fence (also called cyclone fence, diamond mesh fence, or wire mesh fence) consists of galvanized steel wire woven into a diamond pattern and tensioned between steel posts. In the Philippine market, three grades dominate:

Grade	Wire Gauge (BWG)	Wire Ø (mm)	Typical Philippine Use
Light Duty	BWG 14 – 16	2.0 – 1.6mm	Residential lots, tennis courts, temporary fencing
Standard Duty	BWG 12	2.7mm	Subdivisions, school perimeters, barangay facilities
Heavy Duty (DPWH)	BWG 10 – 11	3.4 – 3.0mm	DPWH highway, PEZA industrial parks, airport perimeter

Standard Philippines dimensions: Mesh opening is typically 50×50mm (2×2 inches). Roll dimensions are 1.5m or 1.8m height × 15m or 25m length. Custom heights from 0.9m to 3.0m available on order.

2. Wire Gauge & Post Selection for Typhoon Zones

The Philippines' NSCP 2015 Wind Load Map divides the country into three wind zones. Chain link fence specification must account for these wind pressures:

Wind Zone	Design Wind Speed	Min Wire Gauge	Post Spacing	Typical Location
Zone I	200 kph	BWG 12	3.0m	Southern Mindanao (Davao, GenSan)
Zone II	250 kph	BWG 12	2.5m	Metro Manila, Cebu, Central Luzon
Zone III	> 310 kph (Super Typhoon)	BWG 10	2.0m	Eastern Samar, Bicol, Northern Luzon coast

2.1 Post Specification Guide

Post Type	Specification	Application
Line Post	G.I. Pipe 2.0" Ø × 2.5mm wall (BWG 12) | SCH 40 for heavy duty	Main fence body, installed at specified spacing
Corner/Terminal Post	G.I. Pipe 2.5" Ø × 3.0mm wall (BWG 11) | SCH 40 minimum	All corners, gate posts, fence terminations
Gate Post	G.I. Pipe 3.0" Ø × 3.5mm wall (BWG 10) | SCH 80 for swing gates	Vehicle and pedestrian gate support
Top Rail	G.I. Pipe 1.5" Ø × 2.0mm wall	Horizontal stiffener at top of fence (mandatory for DPWH)

Concrete footing: All posts to be embedded in 300×300×600mm concrete footings (Class A, 20.7 MPa). For Zone III (typhoon-prone), increase footing to 400×400×800mm.

3. Philippine Standards: DHSUD, DPWH & PEZA

3.1 DHSUD (Department of Human Settlements and Urban Development)

For residential subdivisions, DHSUD (formerly HLURB) prescribes minimum perimeter fence standards under BP 220 (Economic and Socialized Housing) and PD 957 (Subdivision and Condominium):

• Minimum height: 1.5m for interior lots; 1.8m for perimeter lots facing public roads
• Minimum wire gauge: BWG 12 (2.7mm) galvanized
• Post spacing: Maximum 3.0m center-to-center
• Finish: Hot-dip galvanized or PVC-coated; no bare steel permitted
• Gate: Minimum 4.0m wide vehicle gate at subdivision entrance, 1.0m pedestrian gate

3.2 DPWH (Department of Public Works and Highways)

DPWH Standard Specifications cover chain link fence under the Miscellaneous Structures section. Key requirements:

• Highway median barrier: 1.2m minimum height, BWG 10 wire, top rail mandatory
• Bridge pedestrian barrier: 1.5m height, BWG 10 wire, 2.0m post spacing, extended post for handrail
• Right-of-way fencing: 1.8m height, BWG 12 minimum, posts embedded in concrete at 2.5m spacing
• Zinc coating: Minimum 275 g/m² (hot-dip galvanized) for all highway applications

3.3 PEZA (Philippine Economic Zone Authority)

PEZA-registered industrial parks and ecozones require perimeter security fencing meeting the following minimums:

• Minimum height: 2.4m (with or without barbed wire top extension)
• Wire gauge: BWG 10 (3.4mm) minimum
• Post spacing: 2.5m maximum
• CCTV integration: Posts must accommodate camera mounting brackets
• Gate: Sliding or swing, minimum 6.0m vehicle clearance, with guard house integration

4. Galvanized vs PVC-Coated Chain Link in Philippine Climate

The Philippines' combination of high humidity (75-85% year-round average), salt-laden coastal air, and acid rain from volcanic emissions (Taal, Mayon) makes coating selection critical for chain link fence service life.

Coating Type	Zinc Layer	Service Life (Inland)	Service Life (Coastal <500m)	Relative Cost
Electro-Galvanized	40-60 g/m²	5-8 years	❌ Not recommended	1.0× (baseline)
Hot-Dip Galvanized (HDG)	245-275 g/m²	15-25 years	8-12 years	1.2×
PVC-Coated (over HDG)	245 g/m² + 0.5mm PVC	25-35 years	15-25 years	1.5×
Galfan + PVC	400+ g/m² + 0.5mm PVC	35-50 years	25-35 years	1.8×

Recommendation for Philippine projects:

• Inland subdivisions (Metro Manila, Laguna, Cavite): Hot-dip galvanized BWG 12 is adequate. 15-25 year durability without PVC.
• Coastal subdivisions (Batangas, Cebu, Davao Gulf): Minimum HDG BWG 12 + PVC coating. Galfan recommended within 300m of shoreline.
• Industrial parks (PEZA, Laguna Technopark): HDG BWG 10 + PVC coating for 25+ year lifecycle with minimal maintenance.

5. Installation Cost Breakdown (PHP per Linear Meter)

Philippine chain link fence installation costs vary significantly by region, site accessibility, and coating specification. Below are representative costs for a 1.8m high, BWG 12 HDG chain link fence in Central Luzon (2026 pricing).

Cost Component	Cost per Linear Meter (PHP)	Notes
Chain link fabric (1.8m × 25m roll, HDG)	₱380 – 550	Landed Manila; FOB Tianjin = $1.50-2.50/lm
Line posts (2.0" G.I., 2.5m spacing)	₱120 – 200	Includes post cap and tension bands
Top rail (1.5" G.I. pipe)	₱150 – 220	Mandatory for DPWH; optional for residential
Tension wire (bottom)	₱40 – 60	Prevents bottom lifting
Concrete footing (300×300×600mm)	₱80 – 120	Class A concrete, per post
Labor (installation)	₱250 – 400	3-4 workers, 15-20 lm/day output
TOTAL per linear meter	₱1,020 – 1,550	$18 – 28 / linear meter

5.1 Total Project Cost Examples

Project Type	Length	Total Cost (PHP)	Specification
Residential Lot (200m²)	60 lm	₱61,200 – 93,000	1.5m H, BWG 12, HDG, 3.0m spacing
Subdivision Perimeter (1ha)	400 lm	₱408,000 – 620,000	1.8m H, BWG 12, PVC-coated, 2.5m spacing + top rail
PEZA Industrial Park (5ha)	1,000 lm	₱1.55M – 2.10M	2.4m H, BWG 10, Galfan+PVC, 2.0m spacing + barbed wire top

6. Coastal & High-Corrosion Zone Specifications

Philippine coastal chain link fence installations within 2km of the sea require corrosion mitigation beyond standard HDG. Salt spray testing per ASTM B117 demonstrates why:

Distance from Coast	Corrosion Category (ISO 9223)	Required Specification	Philippine Examples
< 300m	C5-M (Very High Marine)	Galfan 400+ g/m² + 0.5mm PVC coating; 316 stainless fittings	Manila Bay reclamation, Cebu waterfront, Boracay
300m – 1km	C4 (High Marine)	HDG 275 g/m² + 0.5mm PVC coating minimum	Batangas City, Lapu-Lapu, Davao coastal
1km – 2km	C3 (Medium)	HDG 245 g/m² minimum; PVC optional	Cavite, Bulacan coastal, Iloilo
> 2km inland	C2 (Low)	HDG 245 g/m² standard	Metro Manila, Central Luzon, Mindanao interior

7. Subdivision & Residential Perimeter Fencing Guide

For Philippine subdivision developers, chain link fence is the most cost-effective perimeter security solution that meets DHSUD compliance. Here is a standard specification template:

Standard Subdivision Chain Link Specification (1.8m height):

• Fabric: Hot-dip galvanized chain link mesh, BWG 12 (2.7mm), 50×50mm diamond pattern, 1.8m height
• Line posts: 2.0" Ø G.I. pipe, SCH 40, 2.5m spacing, embedded in 300×300×600mm concrete
• Corner posts: 2.5" Ø G.I. pipe, SCH 40, with diagonal bracing
• Top rail: 1.5" Ø G.I. pipe continuous
• Bottom tension wire: BWG 9 (3.7mm) galvanized wire
• Gate: 4.0m sliding gate (vehicle) + 1.0m swing gate (pedestrian), matching fabric specification
• Finish: All posts and rails to be painted with zinc chromate primer + 2 coats enamel (green or black typical)
• Barbed wire: Optional 3-strand barbed wire extension arm at 45° outward (adds 0.6m effective barrier height)

8. DPWH Highway & Bridge Safety Fencing

DPWH highway chain link fence serves both safety and security functions. Specification differences from residential fencing:

Parameter	Highway Median	Bridge Pedestrian Barrier	ROW Fencing
Height	1.2m	1.5m	1.8m
Wire Gauge	BWG 10 (3.4mm)	BWG 10 (3.4mm)	BWG 12 (2.7mm)
Post Spacing	2.5m	2.0m	3.0m
Top Rail	Required	Required (doubles as handrail)	Recommended
Zinc Coating	275 g/m² minimum	275 g/m² minimum	245 g/m² minimum

Important DPWH note: All DPWH chain link fence installations must have a Materials Engineer sign-off on zinc coating thickness (measured by magnetic gauge, minimum 5 readings per roll). Submit Mill Test Certificates with the Materials Test Report.

9. Sourcing Chain Link Fence from China for Philippine Projects

Importing chain link fence from China offers Philippine contractors and developers a cost advantage of 20-35% compared to local suppliers, with 15-25 day shipping to Manila, Cebu, and Davao ports.

Order Specification Checklist:

• Wire gauge: BWG 10, 12, or 14 (specify)
• Mesh opening: 50×50mm standard; 25×25mm, 38×38mm, 60×60mm available
• Roll height: 0.9m, 1.2m, 1.5m, 1.8m, 2.0m, 2.4m
• Roll length: 15m or 25m standard
• Coating: Hot-dip galvanized (245 g/m²) / HDG 275 g/m² / PVC-coated over HDG / Galfan + PVC
• Color (PVC coated): Green RAL 6005, Black RAL 9005, White RAL 9010 (green is Philippine standard)
• Accessories: Tension bars, tension bands, post caps, brace bands, rail ends, tie wires
• Posts: G.I. pipe SCH 40 — line posts 2.0", corner posts 2.5", gate posts 3.0"

Shipping & Import:

• Container: 20GP fits ~800-1,000 rolls (1.8m × 15m rolls) folded
• Shipping Tianjin → Manila: 12-18 days
• HS Code: 7314.31 (welded chain link mesh) — 5% duty
• VAT: 12% on CIF value plus duty
• Payment: T/T 30% deposit, 70% before shipment; L/C at sight for orders > $30,000

Contact us on WhatsApp or email for a chain link fence quotation with DHSUD/DPWH/PEZA compliant specifications, FOB Tianjin pricing, and shipping to your Philippine project site.
